Water flows from tank A to tank B through a turbine as shown. Both tanks are open to the atmosphere on top. The flow rat

Post by answerhappygod »

Water Flows From Tank A To Tank B Through A Turbine As Shown Both Tanks Are Open To The Atmosphere On Top The Flow Rat 1
Water Flows From Tank A To Tank B Through A Turbine As Shown Both Tanks Are Open To The Atmosphere On Top The Flow Rat 1 (30.24 KiB) Viewed 34 times

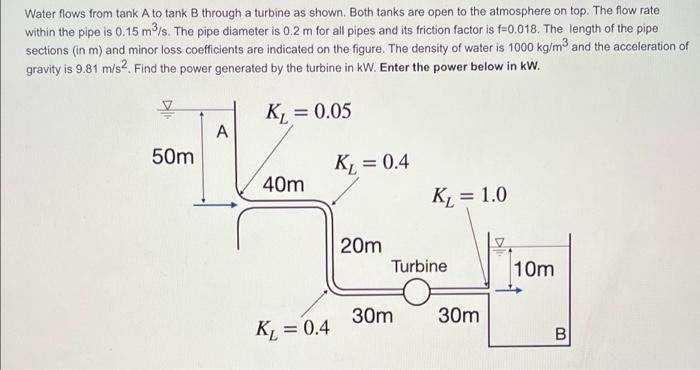

Water flows from tank A to tank B through a turbine as shown. Both tanks are open to the atmosphere on top. The flow rate within the pipe is 0.15 m³/s. The pipe diameter is 0.2 m for all pipes and its friction factor is f-0.018. The length of the pipe sections (in m) and minor loss coefficients are indicated on the figure. The density of water is 1000 kg/m³ and the acceleration of gravity is 9.81 m/s². Find the power generated by the turbine in kW. Enter the power below in kW. K₁ = 0.05 A 11 50m 40m KL= = 0.4 K₁ = 0.4 20m K₁ = 1.0 Turbine 30m 30m 10m B
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
