Double Acting Cylinder r Power Circuit Y1 Shutoff valve Power Unit B 4/2 DC Valve M Single solenoid operated PT M Fi Ts

Post by answerhappygod »

Double Acting Cylinder R Power Circuit Y1 Shutoff Valve Power Unit B 4 2 Dc Valve M Single Solenoid Operated Pt M Fi Ts 1
Double Acting Cylinder R Power Circuit Y1 Shutoff Valve Power Unit B 4 2 Dc Valve M Single Solenoid Operated Pt M Fi Ts 1 (104.71 KiB) Viewed 26 times
Please describe the power circuit and control circuit , how itwork?

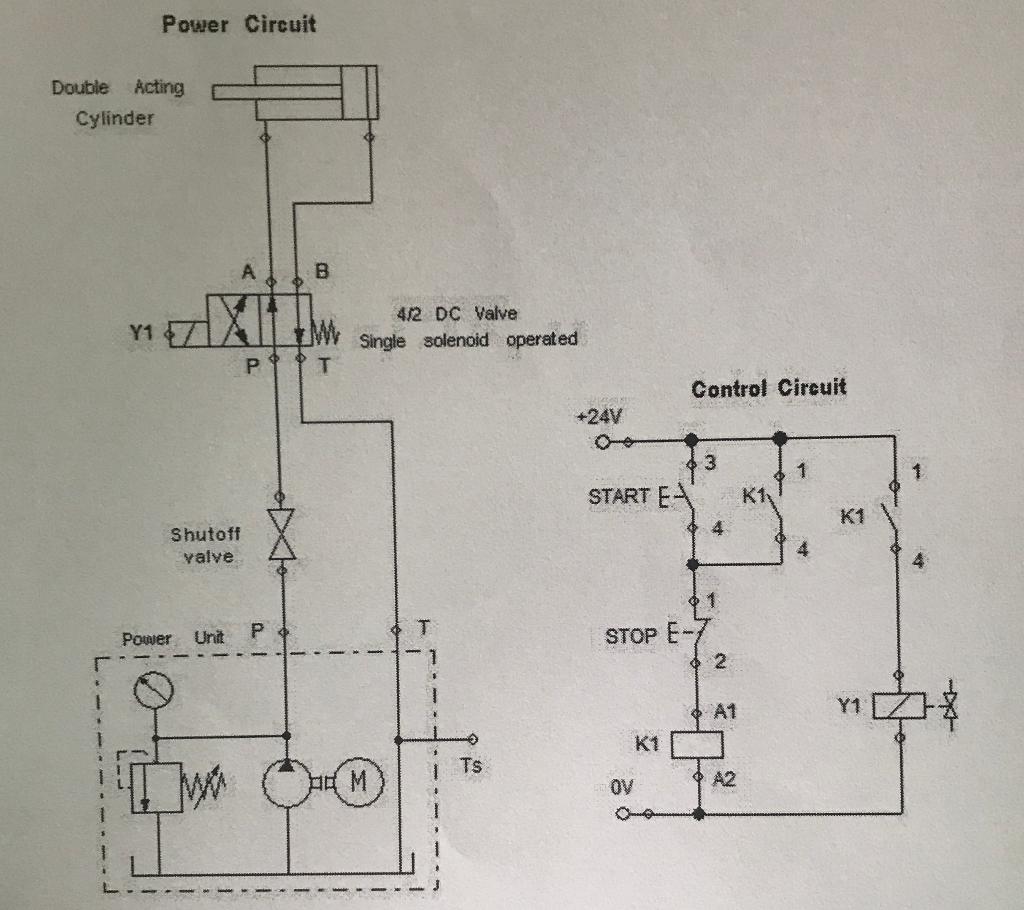

Double Acting Cylinder r Power Circuit Y1 Shutoff valve Power Unit B 4/2 DC Valve M Single solenoid operated PT M Fi Ts S +24V START EA Control Circuit K1 3 4 1 STOP E-7 $2 A1 A2 K1 1 4 K1 Y1
