Question 4 For The Circuit Of Figure Q4 Find The Labelled Node Voltages The Nmos Transistor Has V 1 V Kn W L 2 1 (19.58 KiB) Viewed 16 times

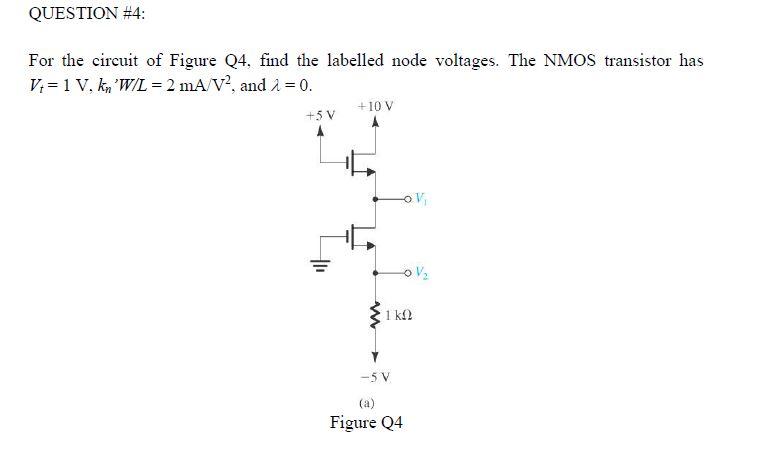

This is Analogue Electronics Subject. I need this solution stepby step. Will thumbs up. Thanks. QUESTION #4: For the circuit of Figure Q4, find the labelled node voltages. The NMOS transistor has V₁=1 V, kn 'W/L = 2 mA/V², and λ = 0. +5V 1₁ +10 V -0%₂ 1 kn -5 V (a) Figure Q4
