Develop an equation for the mutual inductance 'm' between the windings in terms of the self inductances and the degree o

[answerhappygod]

Develop An Equation For The Mutual Inductance M Between The Windings In Terms Of The Self Inductances And The Degree O 1 (1.5 MiB) Viewed 27 times

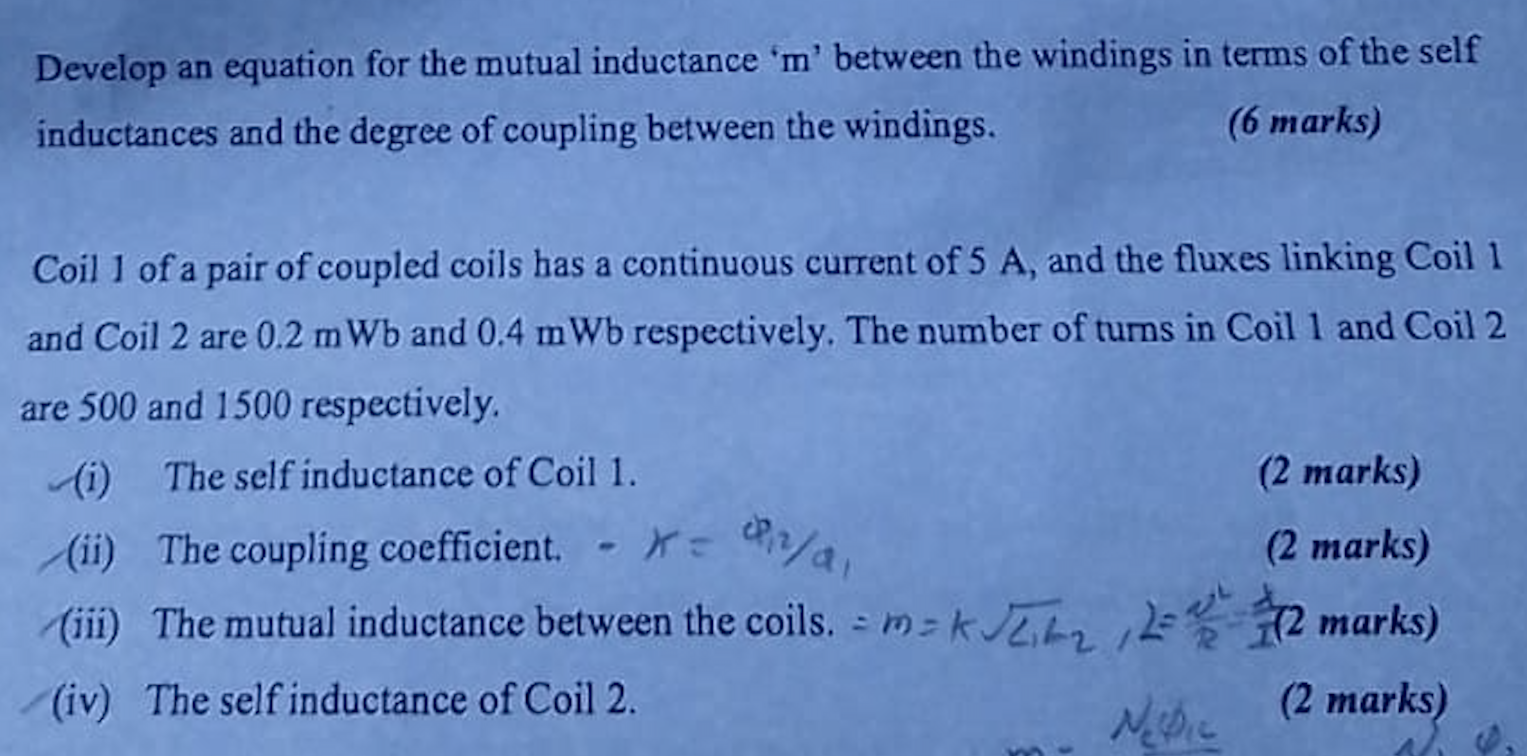

Develop an equation for the mutual inductance 'm' between the windings in terms of the self inductances and the degree of coupling between the windings. (6 marks) Coil 1 of a pair of coupled coils has a continuous current of 5 A, and the fluxes linking Coil 1 and Coil 2 are 0.2 m Wb and 0.4 mWb respectively. The number of turns in Coil 1 and Coil 2 are 500 and 1500 respectively. (i) The self inductance of Coil 1. (ii) The coupling coefficient. - x = /₁ (iii) The mutual inductance between the coils. = m = K √b₂ 12 = 2/² (iv) The self inductance of Coil 2. NeDic (2 marks) (2 marks) (2 marks) (2 marks)
