• Calculate the AC impedance Z of the following four circuit combinations shown in (i)...(iv) below. Express your answer

[answerhappygod]

Calculate The Ac Impedance Z Of The Following Four Circuit Combinations Shown In I Iv Below Express Your Answer 1 (34.17 KiB) Viewed 21 times

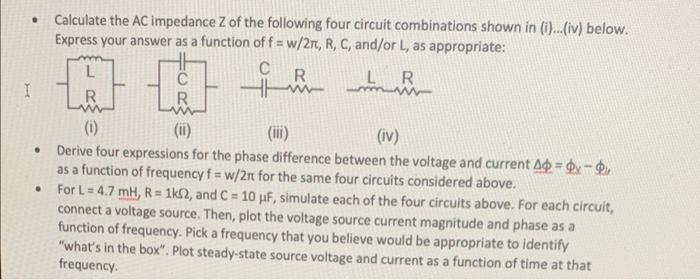

• Calculate the AC impedance Z of the following four circuit combinations shown in (i)...(iv) below. Express your answer as a function of f = w/2r, R, C, and/or L, as appropriate: R I ● 다 R C R HHW (1) (iii) (iv) Derive four expressions for the phase difference between the voltage and current Ap=x- as a function of frequency f= w/2rt for the same four circuits considered above. For L=4.7 mH, R= 1k2, and C= 10 µF, simulate each of the four circuits above. For each circuit, connect a voltage source. Then, plot the voltage source current magnitude and phase as a function of frequency. Pick a frequency that you believe would be appropriate to identify "what's in the box". Plot steady-state source voltage and current as a function of time at that frequency.
