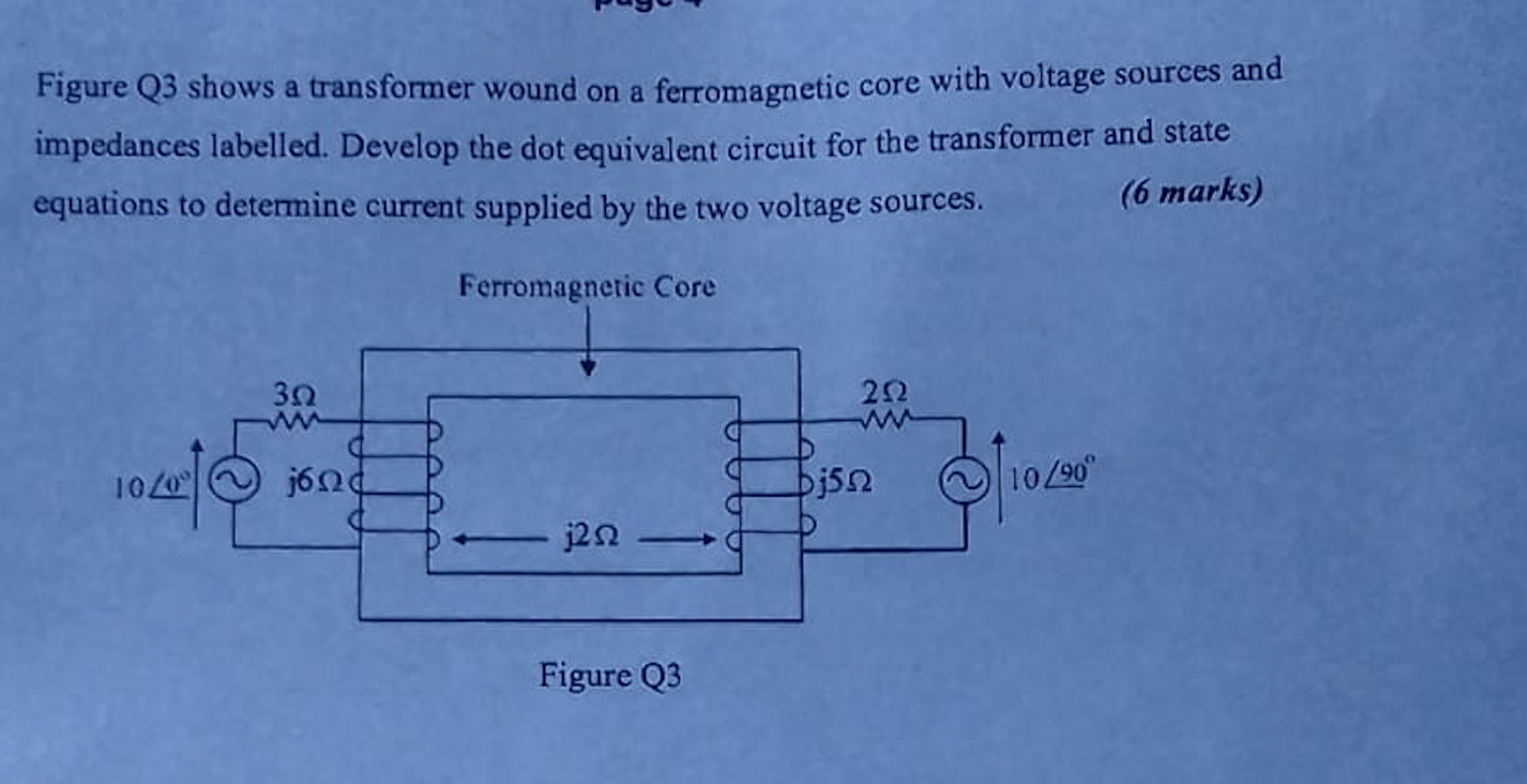

Figure Q3 shows a transformer wound on a ferromagnetic core with voltage sources and impedances labelled. Develop the dot equivalent circuit for the transformer and state equations to determine current supplied by the two voltage sources. (6 marks) Ferromagnetic Core 10/0° 30 jond j2n Figure Q3 212 Bissz 10/90°
