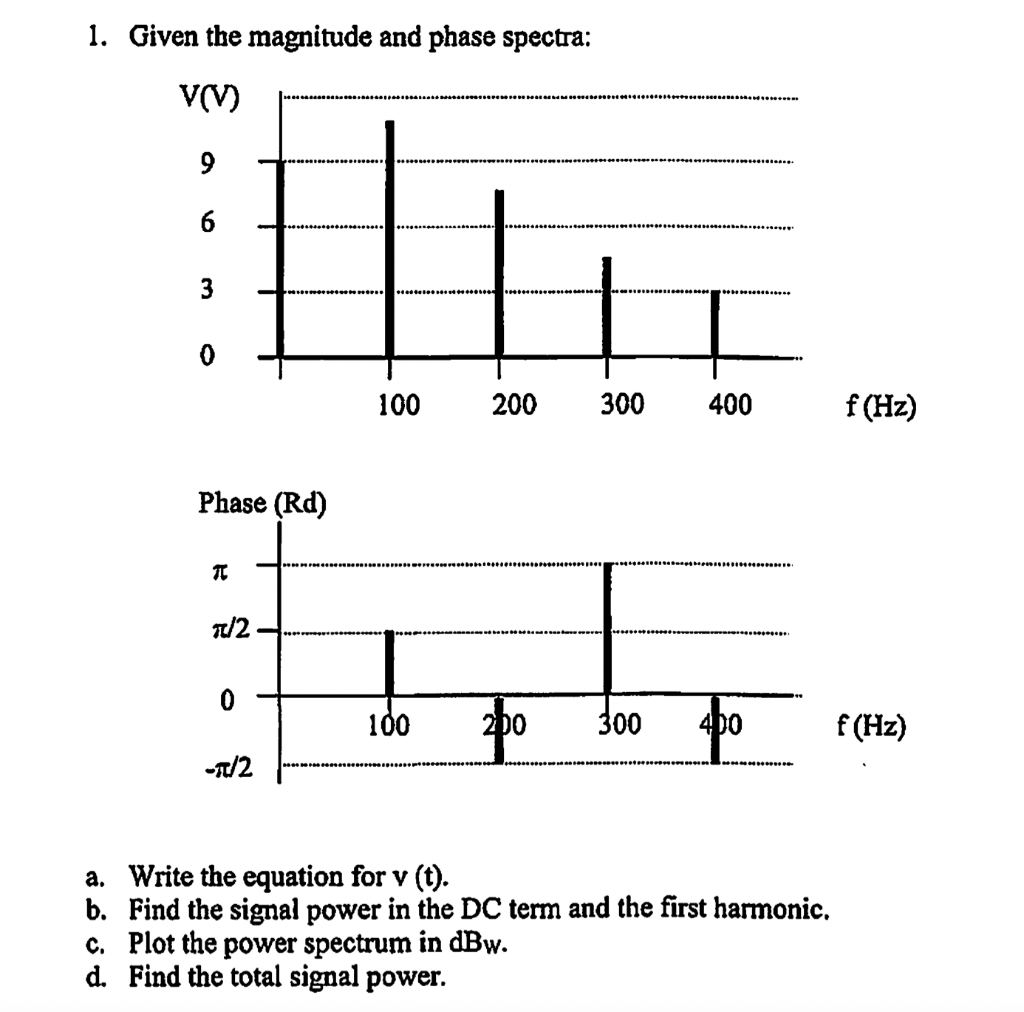

1. Given the magnitude and phase spectra: V(V) 9 6 3 Phase (Rd) R π/2. 0 -π/2 100 200 300 400 100 200 300 a. Write the e
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
1. Given the magnitude and phase spectra: V(V) 9 6 3 Phase (Rd) R π/2. 0 -π/2 100 200 300 400 100 200 300 a. Write the e
1. Given the magnitude and phase spectra: V(V) 9 6 3 Phase (Rd) R π/2. 0 -π/2 100 200 300 400 100 200 300 a. Write the equation for v (t). b. Find the signal power in the DC term and the first harmonic. c. Plot the power spectrum in dBw. d. Find the total signal power. f (Hz) f (Hz)
