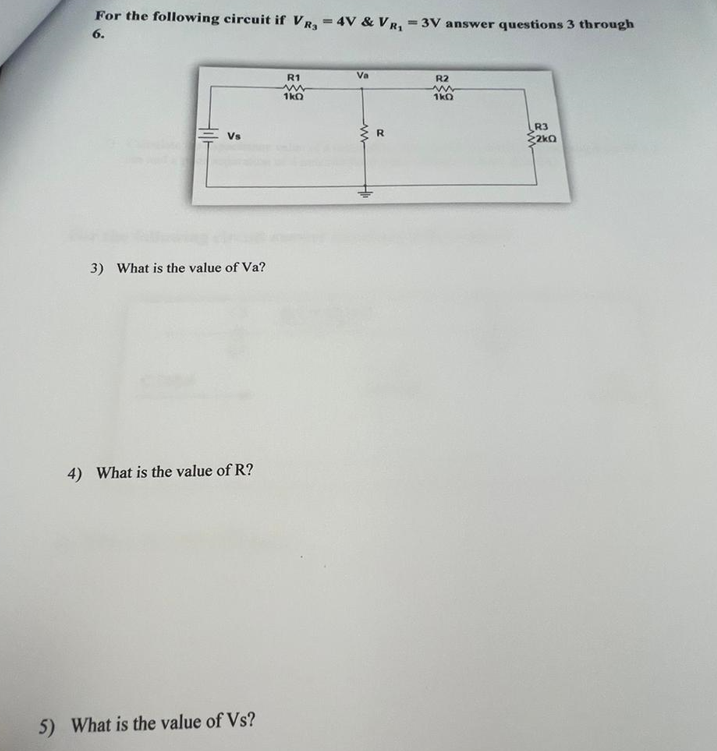

For the following circuit if VR, = 4V & VR, = 3V answer questions 3 through 6. Vs 3) What is the value of Va? 4) What is the value of R? 5) What is the value of Vs? R1 w 1kQ Va R R2 w 1k0 R3 2kQ

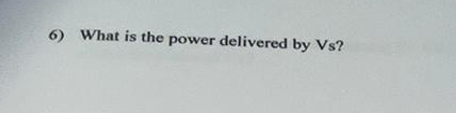

6) What is the power delivered by Vs?
