Q4(25) (a) Clearly explain the operation of the given circuit. (b) Sketch vo1 and vo for Vin = 2sin(100t) and RC= 15ms.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q4(25) (a) Clearly explain the operation of the given circuit. (b) Sketch vo1 and vo for Vin = 2sin(100t) and RC= 15ms.

Post by answerhappygod »

Q4 25 A Clearly Explain The Operation Of The Given Circuit B Sketch Vo1 And Vo For Vin 2sin 100t And Rc 15ms 1
Q4 25 A Clearly Explain The Operation Of The Given Circuit B Sketch Vo1 And Vo For Vin 2sin 100t And Rc 15ms 1 (460.31 KiB) Viewed 20 times

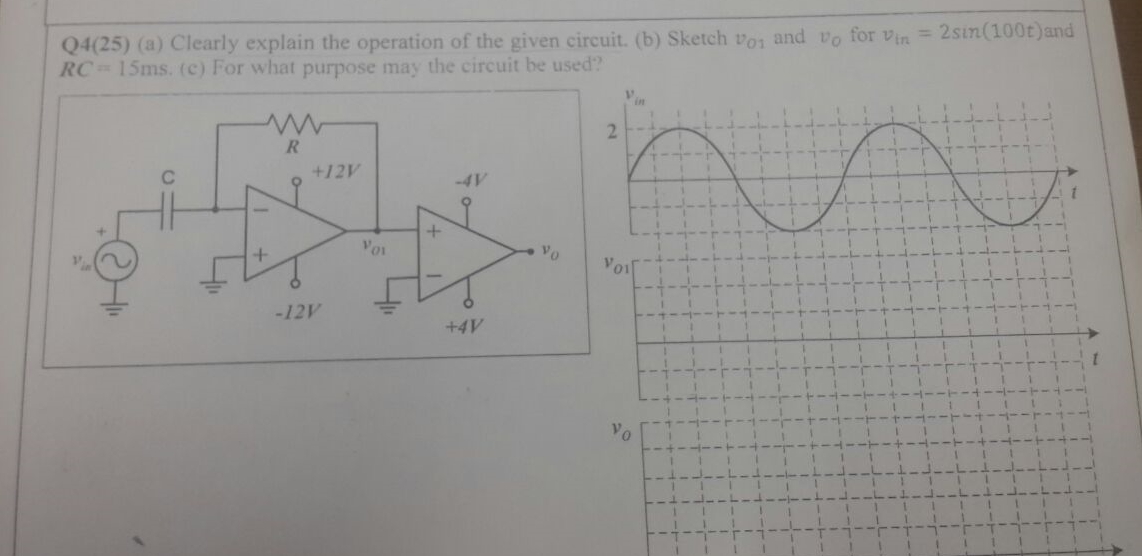

Q4(25) (a) Clearly explain the operation of the given circuit. (b) Sketch vo1 and vo for Vin = 2sin(100t) and RC= 15ms. (c) For what purpose may the circuit be used? www R + +12V -12V Voi + +4V vo 2 Voil Vo 1
