Question 3[40 Points] In the following circuit, if v(t)= 2u(t) calculate is (t) assuming all initial condition values ar

[answerhappygod]

Question 3 40 Points In The Following Circuit If V T 2u T Calculate Is T Assuming All Initial Condition Values Ar 1 (53.58 KiB) Viewed 34 times

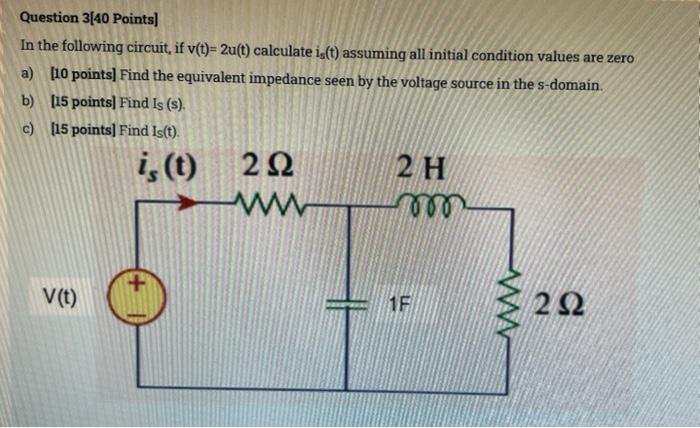

Question 3[40 Points] In the following circuit, if v(t)= 2u(t) calculate is (t) assuming all initial condition values are zero a) [10 points] Find the equivalent impedance seen by the voltage source in the s-domain. b) [15 points] Find Is (s). [15 points] Find Is(t). c) V(t) i, (t) + 292 ww 2H wm 1F 252
