Vs1 68 V- Using the Node Voltage Method, Find: IR1 IRZ R3 IR4 IRS VR1 VR2 VR3 VRA VR5 R₁ 5.6 ΚΩ M R₂ 3.3 k R₂ 4.7 ΚΩ ww

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

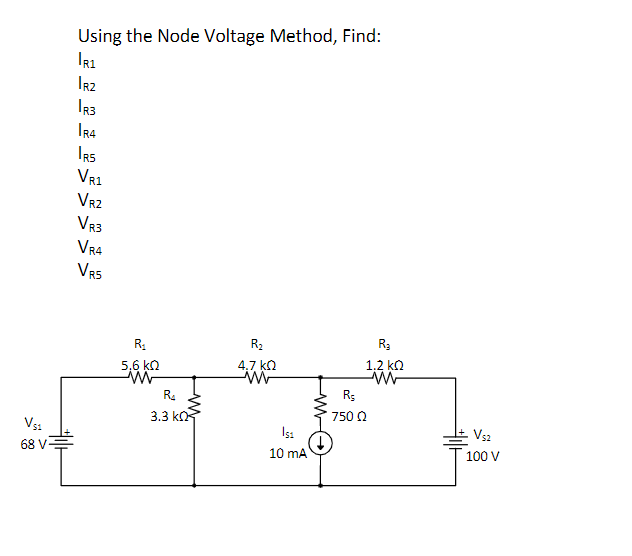

Vs1 68 V- Using the Node Voltage Method, Find: IR1 IRZ R3 IR4 IRS VR1 VR2 VR3 VRA VR5 R₁ 5.6 ΚΩ M R₂ 3.3 k R₂ 4.7 ΚΩ ww

Post by answerhappygod »

1
1 (15.48 KiB) Viewed 19 times
Vs1 68 V- Using the Node Voltage Method, Find: IR1 IRZ R3 IR4 IRS VR1 VR2 VR3 VRA VR5 R₁ 5.6 ΚΩ M R₂ 3.3 k R₂ 4.7 ΚΩ ww Isa 10 mA Rs 750 Ω R₂ 1.2 ΚΩ ww VS2 100 V
