Problem 5 (20 points) Given the circuit in figure 5, the circuit to the left of the dotted line represents a source circ

[answerhappygod]

Problem 5 20 Points Given The Circuit In Figure 5 The Circuit To The Left Of The Dotted Line Represents A Source Circ 1 (47.76 KiB) Viewed 29 times

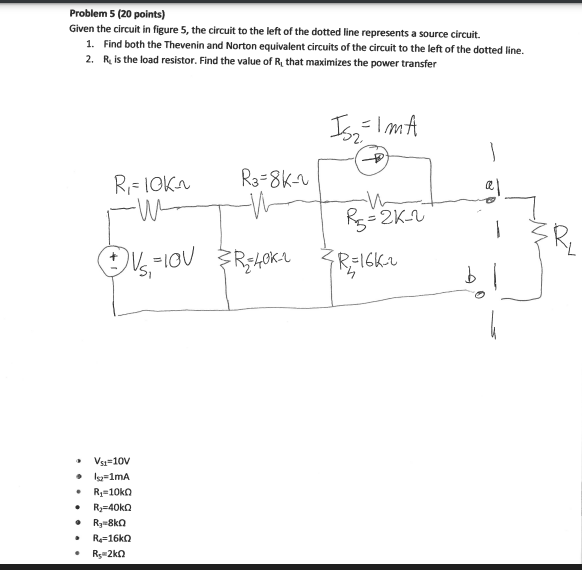

Problem 5 (20 points) Given the circuit in figure 5, the circuit to the left of the dotted line represents a source circuit. 1. Find both the Thevenin and Norton equivalent circuits of the circuit to the left of the dotted line. 2. R, is the load resistor. Find the value of R, that maximizes the power transfer IS₂=IMA W R=2K-2 Vs1=10V . l-1mA • R₁=10k0 R₂-40k • R₂8kQ . R-16k0 Rs=2k · R3-8K-2 R₁-10K~ -W ⒸV₁-10V ³₂=40K-₁ 3R²=16K-2
