TCRs are connected in delta through a 10:1 step-down transformer to 800kV transmission line. Its maximum reactive power

Post by answerhappygod »

Tcrs Are Connected In Delta Through A 10 1 Step Down Transformer To 800kv Transmission Line Its Maximum Reactive Power 1
Tcrs Are Connected In Delta Through A 10 1 Step Down Transformer To 800kv Transmission Line Its Maximum Reactive Power 1 (21.25 KiB) Viewed 27 times

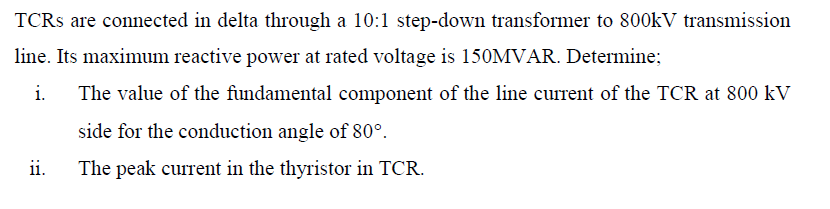

TCRs are connected in delta through a 10:1 step-down transformer to 800kV transmission line. Its maximum reactive power at rated voltage is 150MVAR. Determine; i. The value of the fundamental component of the line current of the TCR at 800 kV side for the conduction angle of 80°. The peak current in the thyristor in TCR. ii.
