i. The Nyquist diagram of the forward-path transfer function G(s)/K of a unity feedback control system is shown in Figur

[answerhappygod]

I The Nyquist Diagram Of The Forward Path Transfer Function G S K Of A Unity Feedback Control System Is Shown In Figur 1 (26.27 KiB) Viewed 36 times

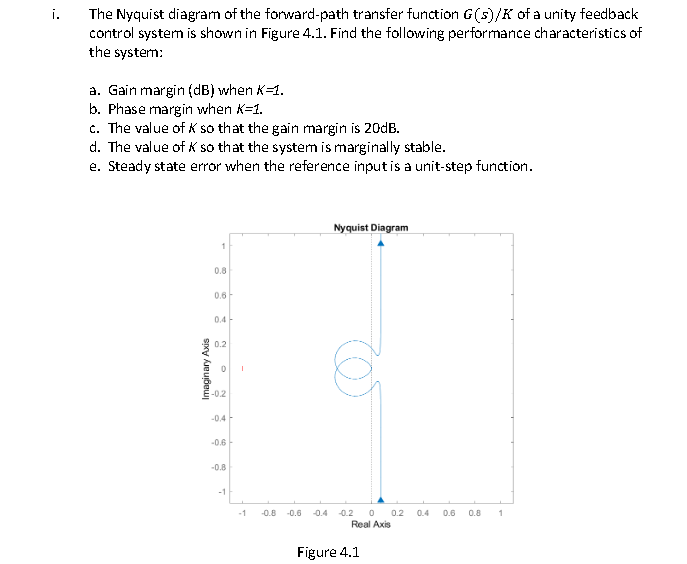

i. The Nyquist diagram of the forward-path transfer function G(s)/K of a unity feedback control system is shown in Figure 4.1. Find the following performance characteristics of the system: a. Gain margin (dB) when K=1. b. Phase margin when K=1. c. The value of K so that the gain margin is 20dB. d. The value of K so that the system is marginally stable. e. Steady state error when the reference input is a unit-step function. Imaginary Axis 1 0.8 0.6 0.4- 0.2 0 -0.2 -0.4 -0.6 -0.8 -1 -1 -0.8 -0.6 Nyquist Diagram -0.2 0 0.2 0.4 Real Axis Figure 4.1 0.6 0.8 1
