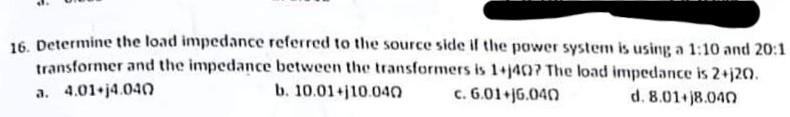

16. Determine the load impedance referred to the source side if the power system is using a 1:10 and 20:1 transformer and the impedance between the transformers is 1+1407 The load impedance is 2+j20. a. 4.01.j4.040 b. 10.01+j10.040 c. 6.01+j6.040 d. 8.01 18.040

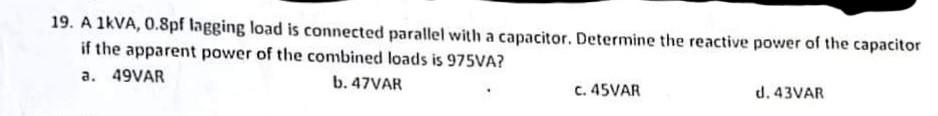

19. A 1kVA, 0.8pf lagging load is connected parallel with a capacitor. Determine the reactive power of the capacitor if the apparent power of the combined loads is 975VA? a. 49VAR b. 47VAR C. 45VAR d. 43VAR

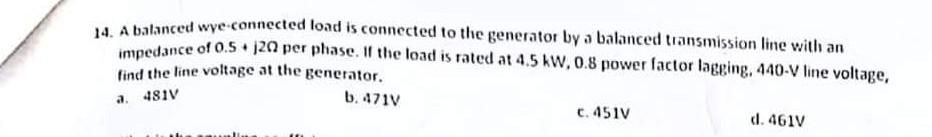

14. A balanced wye-connected load is connected to the generator by a balanced transmission line with an impedance of 0.5 120 per phase. If the load is rated at 4.5 kW, 0.8 power factor lagging, 440-V line voltage, find the line voltage at the generator. a. 481V b. 471V c. 451V d. 461V
