Given that, Zener diode, VZ1 = 6 V, VZ2 = 4 V and its forward biased voltage is 0.7 V. Op-amp used is LM741. Simulate th

[answerhappygod]

Given That Zener Diode Vz1 6 V Vz2 4 V And Its Forward Biased Voltage Is 0 7 V Op Amp Used Is Lm741 Simulate Th 1 (77.84 KiB) Viewed 24 times

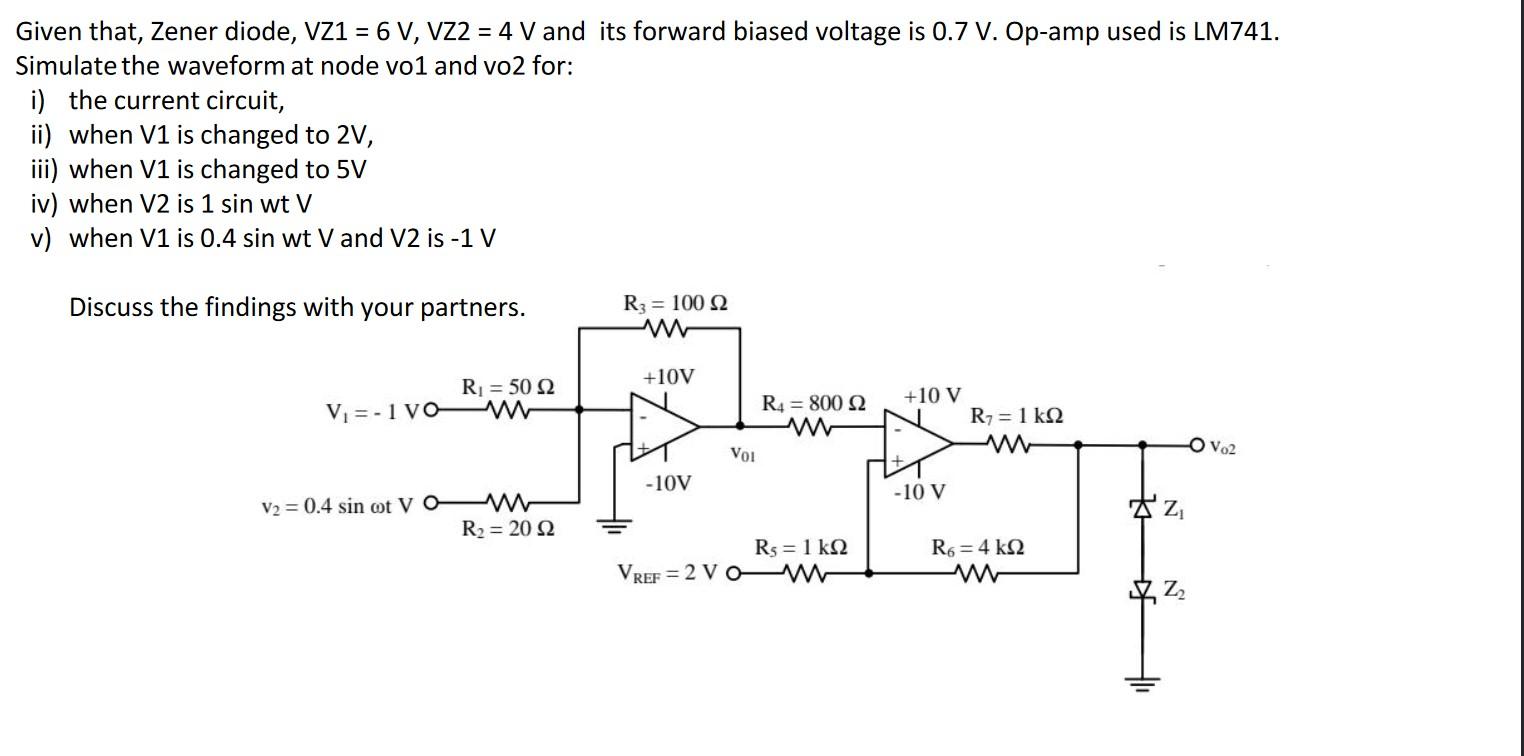

Given that, Zener diode, VZ1 = 6 V, VZ2 = 4 V and its forward biased voltage is 0.7 V. Op-amp used is LM741. Simulate the waveform at node vo1 and vo2 for: i) the current circuit, ii) when V1 is changed to 2V, iii) when V1 is changed to 5V iv) when V2 is 1 sin wt V v) when V1 is 0.4 sin wt V and V2 is -1 V Discuss the findings with your partners. R₁ = 50 2 V₁=-1 VO M V₂ = 0.4 sin cot VOM R₂ = 20 92 R3 = 100 2 ww +10V -10V VOI R4 = 800 2 R, = 1 kΩ VREF=2 VO M +10 V -10 V R7 = 1 kΩ ww R6= 4 k -O Vo2 Z₁ Z₂
