Part 2: Find the system response for a LTICT system: N 10 ½: y(t) The RC series low-pass filter is a LTI CT system. Let'

[answerhappygod]

Part 2 Find The System Response For A Ltict System N 10 Y T The Rc Series Low Pass Filter Is A Lti Ct System Let 1 (92.59 KiB) Viewed 33 times

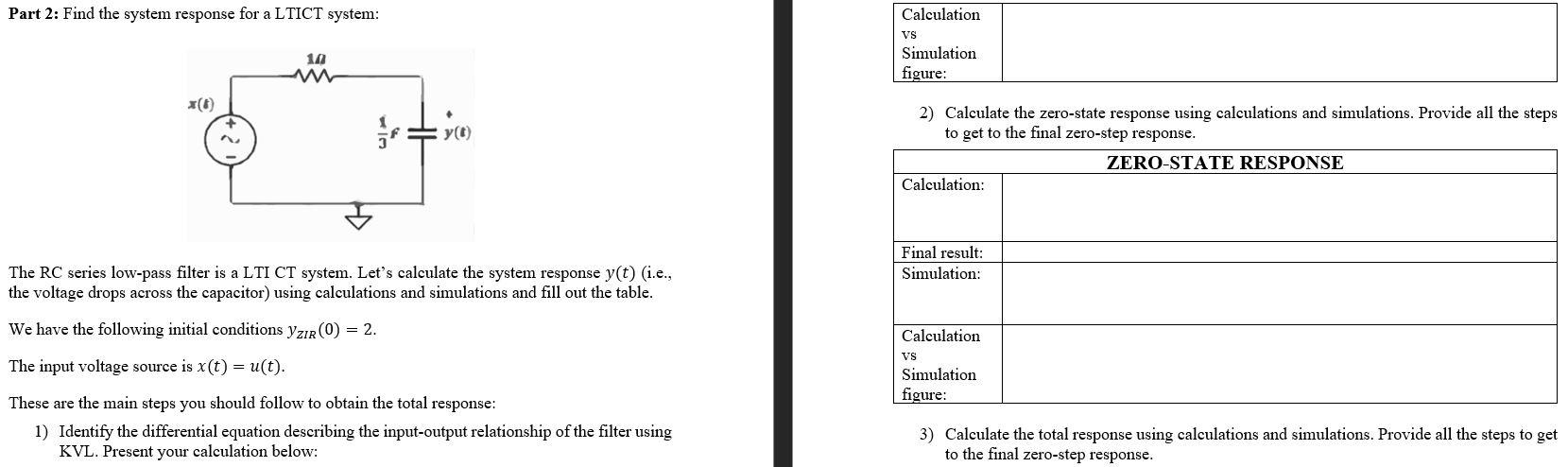

Part 2: Find the system response for a LTICT system: N 10 ½: y(t) The RC series low-pass filter is a LTI CT system. Let's calculate the system response y(t) (i.e.. the voltage drops across the capacitor) using calculations and simulations and fill out the table. We have the following initial conditions yZIR (0) = 2. The input voltage source is x(t) = u(t). These are the main steps you should follow to obtain the total response: 1) Identify the differential equation describing the input-output relationship of the filter using KVL. Present your calculation below: Calculation VS Simulation figure: 2) Calculate the zero-state response using calculations and simulations. Provide all the steps to get to the final zero-step response. ZERO-STATE RESPONSE Calculation: Final result: Simulation: Calculation VS Simulation figure: 3) Calculate the total response using calculations and simulations. Provide all the steps to get to the final zero-step response.
