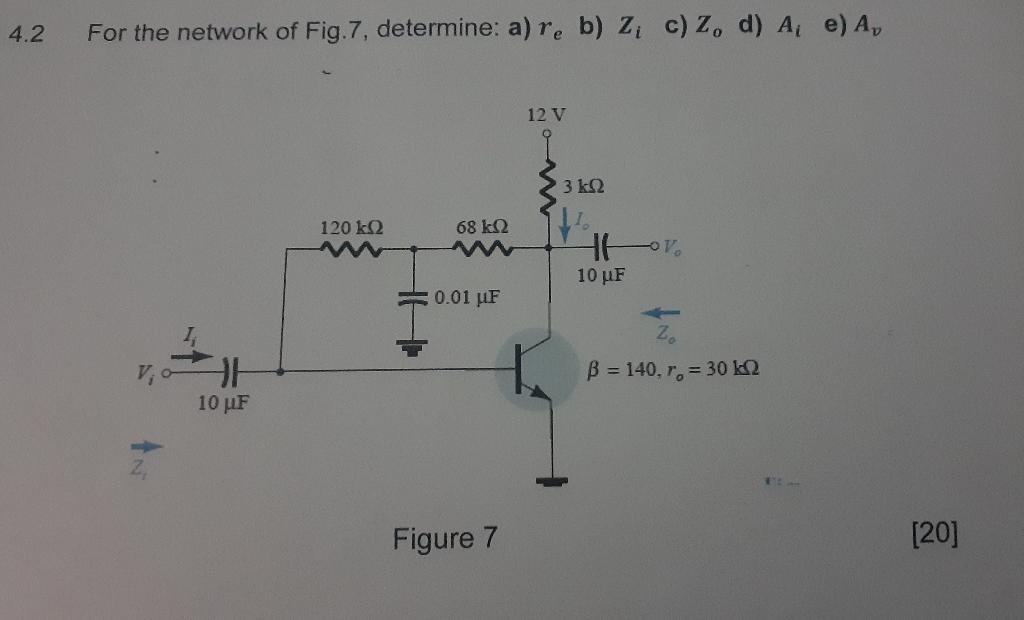

4.2 For the network of Fig.7, determine: a) re b) Z; c) Z, d) A, e) Av HH 10 μF 120 ΚΩ 68 ΚΩ 0.01 μF Figure 7 12 V 3 kQ

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

4.2 For the network of Fig.7, determine: a) re b) Z; c) Z, d) A, e) Av HH 10 μF 120 ΚΩ 68 ΚΩ 0.01 μF Figure 7 12 V 3 kQ

Post by answerhappygod »

1
1 (38.45 KiB) Viewed 22 times
4.2 For the network of Fig.7, determine: a) re b) Z; c) Z, d) A, e) Av HH 10 μF 120 ΚΩ 68 ΚΩ 0.01 μF Figure 7 12 V 3 kQ Ho Hov 10 μF Zo B = 140, r = 30 k [20]
