A three phase transformer has a nameplate rating of 30 MVA, 230Y/69Y KV with a leakage - reactance of 10% and the transf

Post by answerhappygod »

A Three Phase Transformer Has A Nameplate Rating Of 30 Mva 230y 69y Kv With A Leakage Reactance Of 10 And The Transf 1
A Three Phase Transformer Has A Nameplate Rating Of 30 Mva 230y 69y Kv With A Leakage Reactance Of 10 And The Transf 1 (18.91 KiB) Viewed 52 times

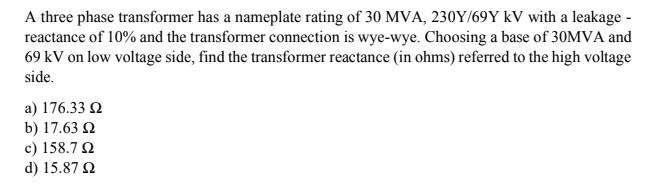

A three phase transformer has a nameplate rating of 30 MVA, 230Y/69Y KV with a leakage - reactance of 10% and the transformer connection is wye-wye. Choosing a base of 30MVA and 69 kV on low voltage side, find the transformer reactance (in ohms) referred to the high voltage side. a) 176.33 2 b) 17.63 Ω c) 158.7 Ω d) 15.87 Ω
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
