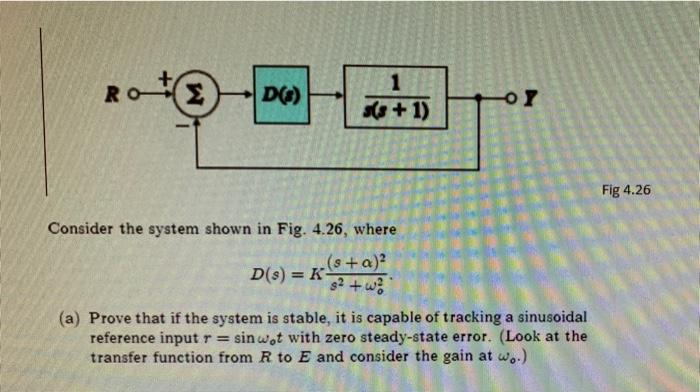

RO D(s) 1 s(s+1) Consider the system shown in Fig. 4.26, where _(s+a)² D(s) = K²+w² (a) Prove that if the system is stable, it is capable of tracking a sinusoidal reference input r = sin wot with zero steady-state error. (Look at the transfer function from R to E and consider the gain at wo.) Fig 4.26
