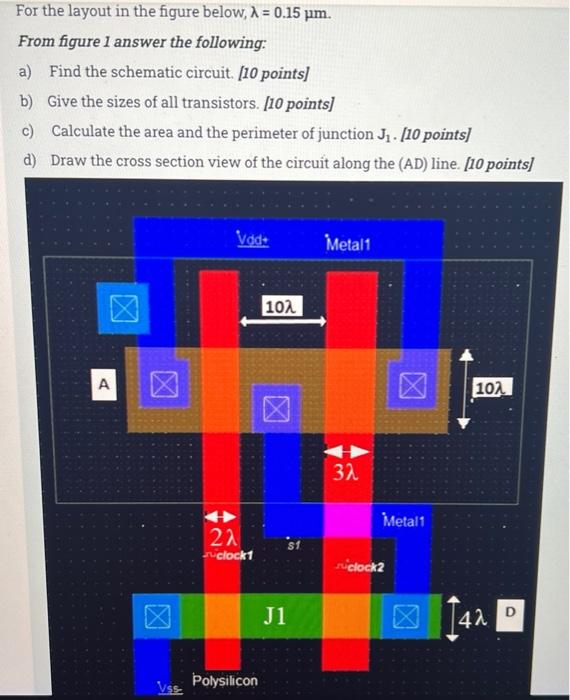

For the layout in the figure below, λ = 0.15 μm. From figure 1 answer the following: a) Find the schematic circuit. [10

[answerhappygod]

1 (54.78 KiB) Viewed 35 times

For the layout in the figure below, λ = 0.15 μm. From figure 1 answer the following: a) Find the schematic circuit. [10 points] b) Give the sizes of all transistors. [10 points] c) Calculate the area and the perimeter of junction J₁. [10 points] d) Draw the cross section view of the circuit along the (AD) line. [10 points] A Vss- Vad+ 22 clock1 Polysilicon 102 J1 Metal1 32 Metal1 clock2 102 42 D
