1. Is the circuit in Figure 13 combinational logic or sequential logic? Explain in a simple fashion what the relationshi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1. Is the circuit in Figure 13 combinational logic or sequential logic? Explain in a simple fashion what the relationshi

Post by answerhappygod »

1 Is The Circuit In Figure 13 Combinational Logic Or Sequential Logic Explain In A Simple Fashion What The Relationshi 1
1 Is The Circuit In Figure 13 Combinational Logic Or Sequential Logic Explain In A Simple Fashion What The Relationshi 1 (17.42 KiB) Viewed 39 times
pa sagot po asap salamat

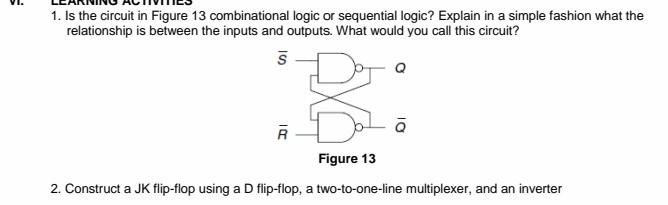

1. Is the circuit in Figure 13 combinational logic or sequential logic? Explain in a simple fashion what the relationship is between the inputs and outputs. What would you call this circuit? S Q Q Figure 13 2. Construct a JK flip-flop using a D flip-flop, a two-to-one-line multiplexer, and an inverter
