1) Calculate the phasor currents 1₁ and 12 in the circuit shown below. j692 12/0° V -j692 I₁ j692 j6Ω 1₂ 192 2) If the 1

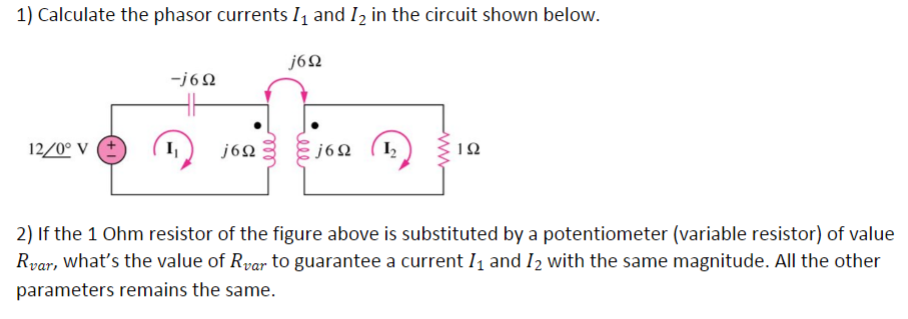

1) Calculate the phasor currents 1₁ and 12 in the circuit shown below. j692 12/0° V -j692 I₁ j692 j6Ω 1₂ 192 2) If the 1 Ohm resistor of the figure above is substituted by a potentiometer (variable resistor) of value Rvar, what's the value of Rvar to guarantee a current 1₁ and 1₂ with the same magnitude. All the other parameters remains the same.
