41. A 10+1100 load is connected to a 220V source. Determine the value of capacitor to be connected in series so that the

[answerhappygod]

41 A 10 1100 Load Is Connected To A 220v Source Determine The Value Of Capacitor To Be Connected In Series So That The 1 (44.33 KiB) Viewed 54 times

Please help me this 5 question, this is my last post question. Thank you very much.

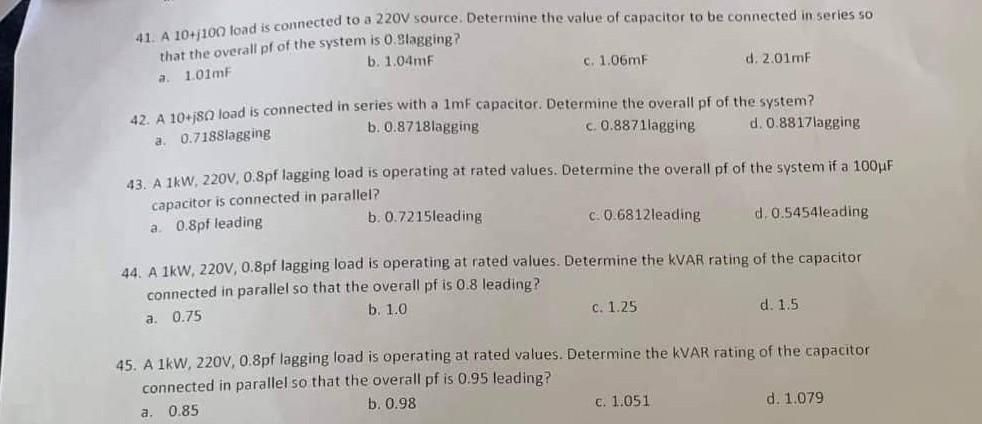

41. A 10+1100 load is connected to a 220V source. Determine the value of capacitor to be connected in series so that the overall pf of the system is 0.Slagging? 1.01mF b. 1.04mF a a c. 1.06mF 42. A 10+180 load is connected in series with a 1mF capacitor. Determine the overall pf of the system? c. 0.8871lagging a. 0.7188lagging b. 0.8718lagging d. 0.8817lagging 43. A 1kW, 220V, 0.8pf lagging load is operating at rated values. Determine the overall pf of the system if a 100µF capacitor is connected in parallel? a. 0.8pf leading b. 0.7215leading c. 0.6812leading d. 0.5454leading 44. A 1kW, 220V, 0.8pf lagging load is operating at rated values. Determine the kVAR rating of the capacitor connected in parallel so that the overall pf is 0.8 leading? 0.75 b. 1.0 a. d. 2.01mF c. 1.25 45. A 1kW, 220V, 0.8pf lagging load is operating at rated values. Determine the kVAR rating of the capacitor connected in parallel so that the overall pf is 0.95 leading? 0.85 b. 0.98 c. 1.051 d. 1.5. d. 1.079
