c) For the circuit shown in Fig. Q2(c), calculate the voltage i, (t) when the switch (S) is closed. (5 Marks) 9.7 ΚΩ 2.8

Post by answerhappygod »

1
1 (49.63 KiB) Viewed 33 times

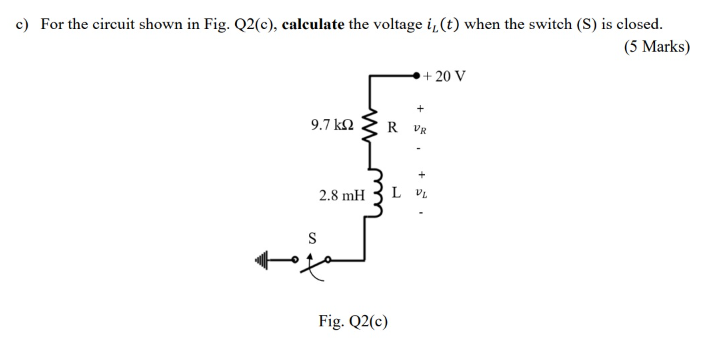

c) For the circuit shown in Fig. Q2(c), calculate the voltage i, (t) when the switch (S) is closed. (5 Marks) 9.7 ΚΩ 2.8 mH S + 20 V + R VR Fig. Q2(c) + L VL
