For the binary cycle shown, the enthalpies are h1 = 3,166 kJ/kg; h2 = 2,257 kJ/kg; h3 = 178 kJ/kg; h4 = 184 kJ/kg; ha =

[answerhappygod]

For The Binary Cycle Shown The Enthalpies Are H1 3 166 Kj Kg H2 2 257 Kj Kg H3 178 Kj Kg H4 184 Kj Kg Ha 1 (34.71 KiB) Viewed 27 times

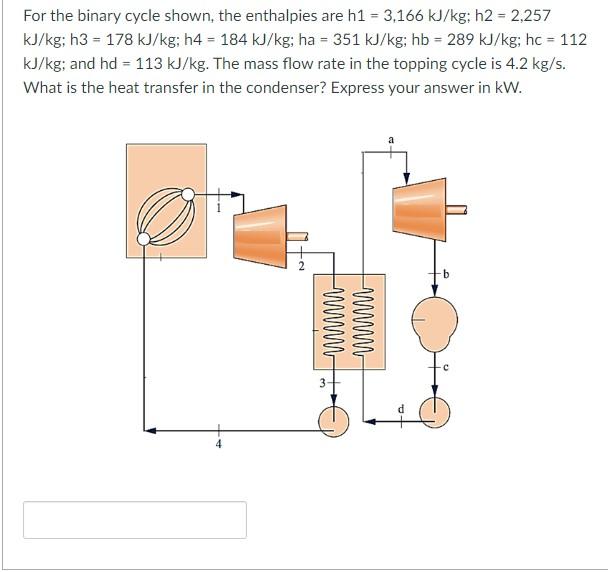

For the binary cycle shown, the enthalpies are h1 = 3,166 kJ/kg; h2 = 2,257 kJ/kg; h3 = 178 kJ/kg; h4 = 184 kJ/kg; ha = 351 kJ/kg; hb = 289 kJ/kg; hc = 112 kJ/kg; and hd = 113 kJ/kg. The mass flow rate in the topping cycle is 4.2 kg/s. What is the heat transfer in the condenser? Express your answer in kW. wwwwww www 3
