A B Assignment 5 Go Over Chapter 10 Of Your Text Book It Will Be Covered In The Next Lecture In Class Using A Waste 1 (133.9 KiB) Viewed 39 times

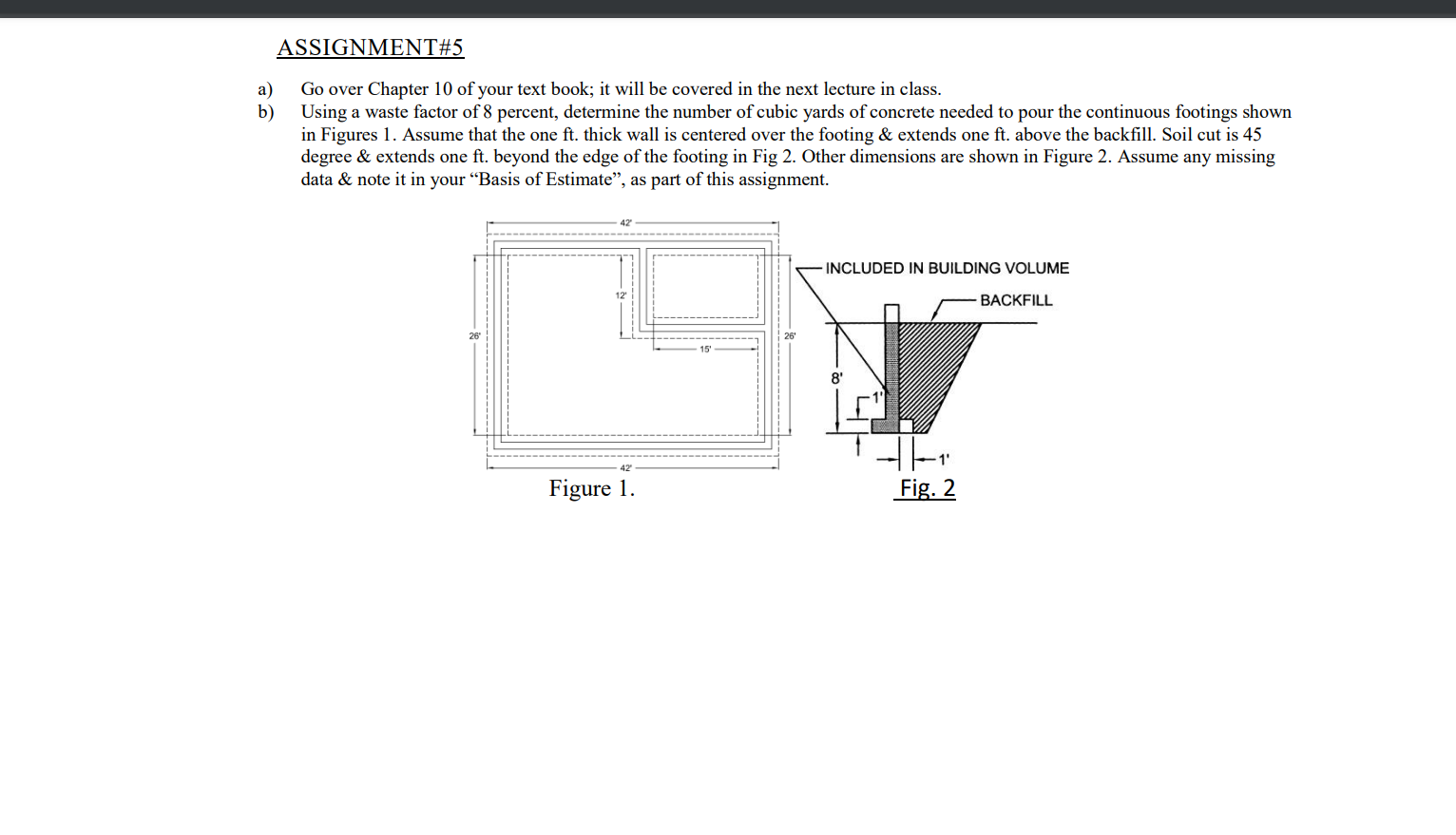

a) b) ASSIGNMENT#5 Go over Chapter 10 of your text book; it will be covered in the next lecture in class. Using a waste factor of 8 percent, determine the number of cubic yards of concrete needed to pour the continuous footings shown in Figures 1. Assume that the one ft. thick wall is centered over the footing & extends one ft. above the backfill. Soil cut is 45 degree & extends one ft. beyond the edge of the footing in Fig 2. Other dimensions are shown in Figure 2. Assume any missing data & note it in your "Basis of Estimate", as part of this assignment. 42 Figure 1. 15' INCLUDED IN BUILDING VOLUME 8' Fig. 2 BACKFILL
1. You must use XL-sheet or Mathcad type program to submit calculations,. Hand written notes are not acceptable as discussed in class many a times. 2. You must calculate a. soil excavation b. backfill quantities c. Form work for both wall & as well as footing, along with concrete for wall. You cannot pour concrete for wall or footimg without reaching the proper elevation & without formwork.
