For the frame shown, determine the Horizontal component of the force at E and A. Vertical component of the force at E an

Post by answerhappygod »

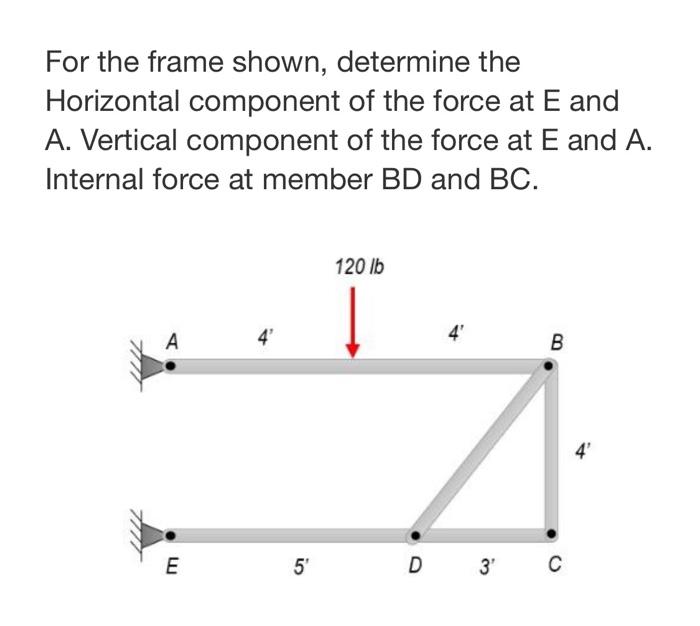

For The Frame Shown Determine The Horizontal Component Of The Force At E And A Vertical Component Of The Force At E An 1
For The Frame Shown Determine The Horizontal Component Of The Force At E And A Vertical Component Of The Force At E An 1 (32.37 KiB) Viewed 59 times
For the frame shown, determine the Horizontal component of the force at E and A. Vertical component of the force at E and A. Internal force at member BD and BC. A E 4' 120 lb B 5' D 3' C 4'
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
