For the frame shown, determine: Horizontal Component of the force at B,C,D and Vertical component of the force at B,C,D

Post by answerhappygod »

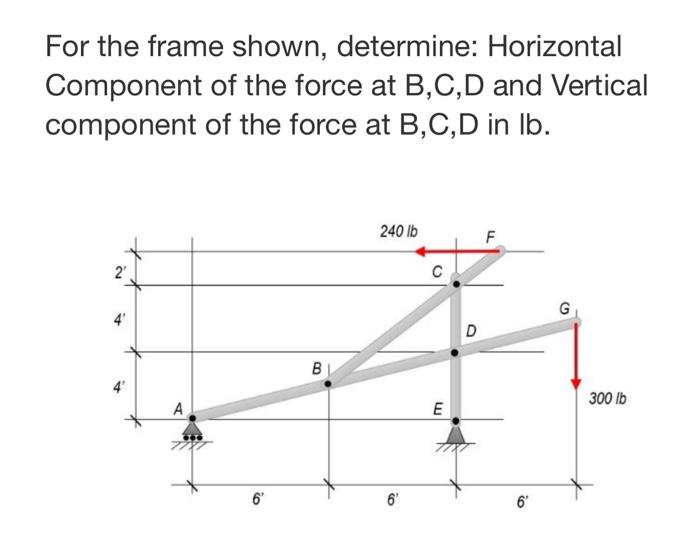

For The Frame Shown Determine Horizontal Component Of The Force At B C D And Vertical Component Of The Force At B C D 1
For The Frame Shown Determine Horizontal Component Of The Force At B C D And Vertical Component Of The Force At B C D 1 (31.49 KiB) Viewed 30 times
For the frame shown, determine: Horizontal Component of the force at B,C,D and Vertical component of the force at B,C,D in lb. 2 A B 240 lb 6' C E D F 6⁰ 300 lb
