Q.2 A beam ABCDE shown in Figure Q.2 is subjected to a point moment, two point loads and a uniformly distributed load. T

[answerhappygod]

Q 2 A Beam Abcde Shown In Figure Q 2 Is Subjected To A Point Moment Two Point Loads And A Uniformly Distributed Load T 1 (82.54 KiB) Viewed 38 times

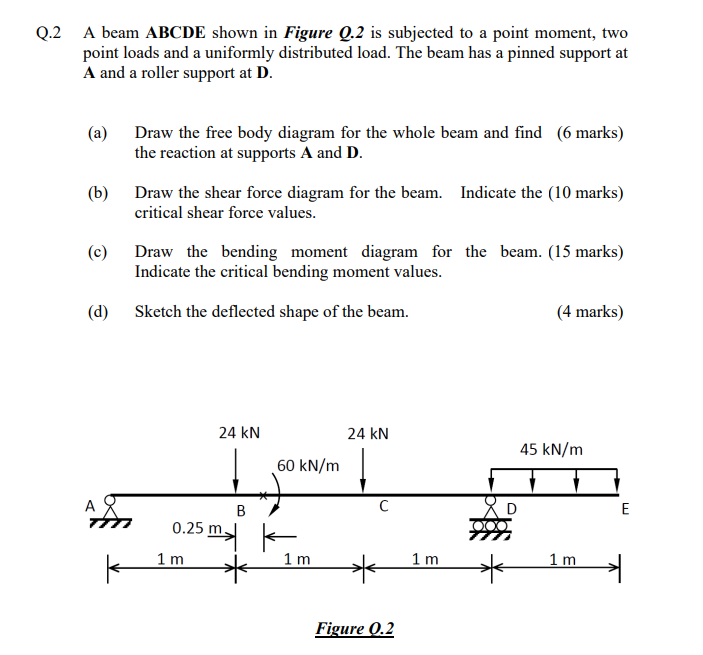

Q.2 A beam ABCDE shown in Figure Q.2 is subjected to a point moment, two point loads and a uniformly distributed load. The beam has a pinned support at A and a roller support at D. (a) (b) (c) (d) A K Draw the free body diagram for the whole beam and find (6 marks) the reaction at supports A and D. Draw the shear force diagram for the beam. Indicate the (10 marks) critical shear force values. Draw the bending moment diagram for the beam. (15 marks) Indicate the critical bending moment values. Sketch the deflected shape of the beam. 24 KN 0.25 m. 1m B 60 kN/m K 1m 24 KN C Figure 0.2 1 m (4 marks) 45 kN/m 1m → E
