A Question 1 (1 point) Retake question Listen Q1. The simple beam is supported by a roller support at point A and a pin

[answerhappygod]

A Question 1 1 Point Retake Question Listen Q1 The Simple Beam Is Supported By A Roller Support At Point A And A Pin 1 (52.6 KiB) Viewed 27 times

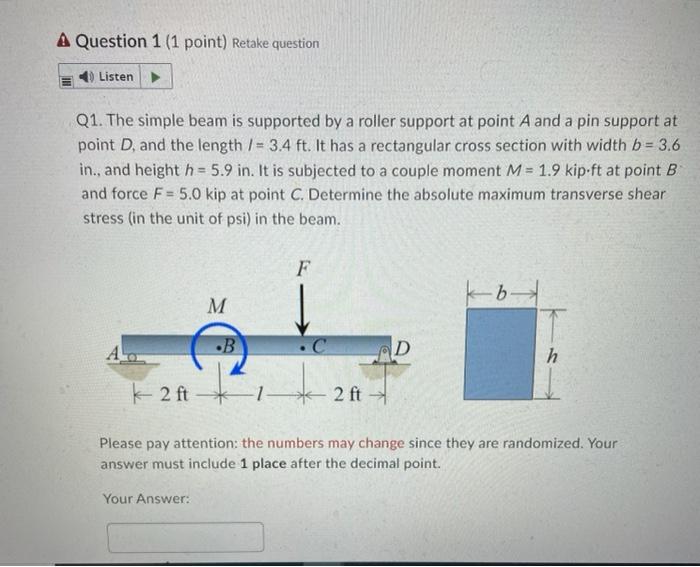

A Question 1 (1 point) Retake question Listen Q1. The simple beam is supported by a roller support at point A and a pin support at point D, and the length /= 3.4 ft. It has a rectangular cross section with width b = 3.6 in., and height h= 5.9 in. It is subjected to a couple moment M = 1.9 kip-ft at point B and force F = 5.0 kip at point C. Determine the absolute maximum transverse shear stress (in the unit of psi) in the beam. M •B 2 ft- Your Answer: F 2 ft → D -b- h Please pay attention: the numbers may change since they are randomized. Your answer must include 1 place after the decimal point.
