Problem 31 2 The Illustrated Cantilever Beam Is To Be Designed With Fy 50 0 Ksi And Fe 4 0 Ksi Size The Steel Bars 1 (127.05 KiB) Viewed 37 times
The illustrated cantilever beam is to be designed with Fy= 50.0 ksi and fc = 4.0 ksi. Size the steel bars formaximum moment and calculate the required bar length based onanchorage requirements. Use a dead load factor of 1.25 and liveload factor of 1.5.

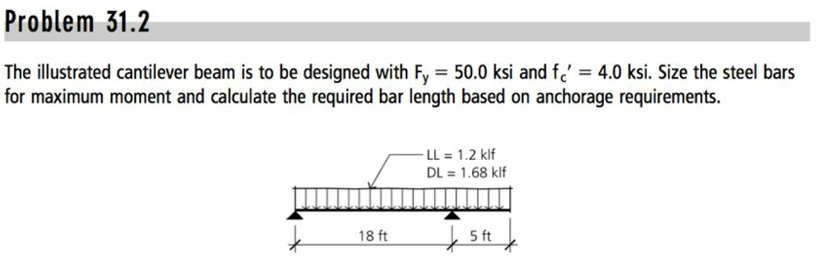

Problem 31.2 The illustrated cantilever beam is to be designed with Fy= 50.0 ksi and fe' = 4.0 ksi. Size the steel bars for maximum moment and calculate the required bar length based on anchorage requirements. 18 ft -LL = 1.2 klf DL = 1.68 klf 5 ft
