Q.3) A W8 X 24 steel column of 8-ft effective length supports an eccentric load as shown below. The material properties

Post by answerhappygod »

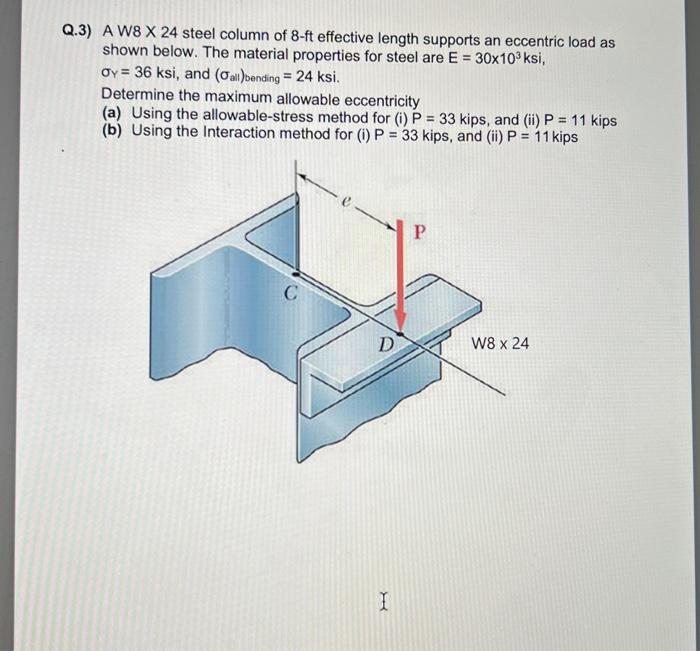

Q 3 A W8 X 24 Steel Column Of 8 Ft Effective Length Supports An Eccentric Load As Shown Below The Material Properties 1
Q 3 A W8 X 24 Steel Column Of 8 Ft Effective Length Supports An Eccentric Load As Shown Below The Material Properties 1 (56.34 KiB) Viewed 35 times
Q.3) A W8 X 24 steel column of 8-ft effective length supports an eccentric load as shown below. The material properties for steel are E = 30x10³ ksi, Oy = 36 ksi, and (all) bending = 24 ksi. Determine the maximum allowable eccentricity (a) Using the allowable-stress method for (i) P = 33 kips, and (ii) P = 11 kips (b) Using the Interaction method for (i) P = 33 kips, and (ii) P = 11 kips D I P W8 x 24
