The internal shear force at a certain section of a steel beam is V = 245 kN. The beam cross section shown in the figure

Post by answerhappygod »

The Internal Shear Force At A Certain Section Of A Steel Beam Is V 245 Kn The Beam Cross Section Shown In The Figure 1
The Internal Shear Force At A Certain Section Of A Steel Beam Is V 245 Kn The Beam Cross Section Shown In The Figure 1 (129.5 KiB) Viewed 54 times

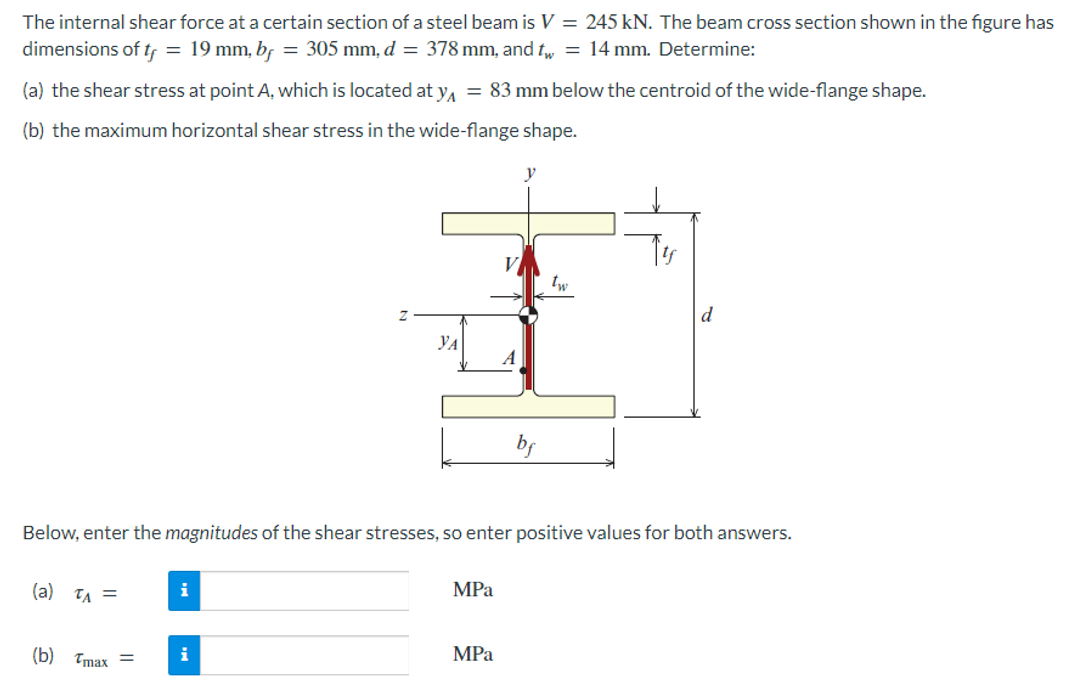

The internal shear force at a certain section of a steel beam is V = 245 kN. The beam cross section shown in the figure has dimensions of tf = 19 mm, bf = 305 mm, d = 378 mm, and t = 14 mm. Determine: (a) the shear stress at point A, which is located at y = 83 mm below the centroid of the wide-flange shape. (b) the maximum horizontal shear stress in the wide-flange shape. (a) T₁ = (b) Tmax= i Z Below, enter the magnitudes of the shear stresses, so enter positive values for both answers. i УА MPa y MPa bf tw
