Homework H27.B Given: Simply-supported beam loaded with force P at D, respectively, along with a couple Mc at C. Find: C

Post by answerhappygod »

Homework H27 B Given Simply Supported Beam Loaded With Force P At D Respectively Along With A Couple Mc At C Find C 1
Homework H27 B Given Simply Supported Beam Loaded With Force P At D Respectively Along With A Couple Mc At C Find C 1 (79.51 KiB) Viewed 32 times

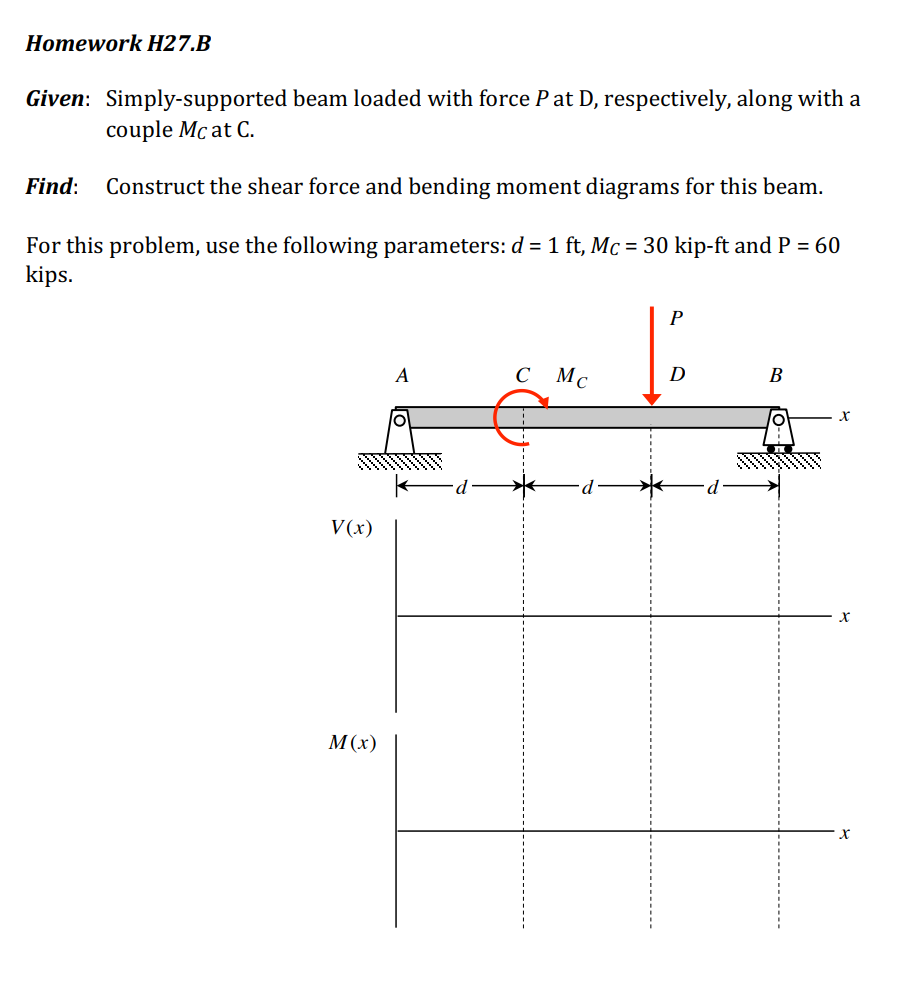

Homework H27.B Given: Simply-supported beam loaded with force P at D, respectively, along with a couple Mc at C. Find: Construct the shear force and bending moment diagrams for this beam. For this problem, use the following parameters: d = 1 ft, Mc = 30 kip-ft and P = 60 kips. V(x) M (x) A C Mc P D B X
