a) max pushing force and max pulling force
b) Factor of safety of rod(buckling)
c)factor of safety of rod (yielding) for pushing and pulling

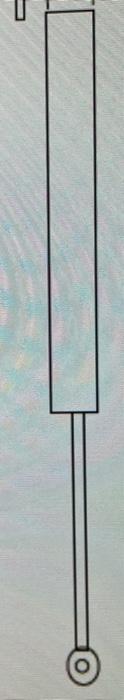

hydraulic cylinder with rod and piston
material of cylinder is 1020steel
sy=30000psi su=55000psi
material of rod is 1050 steel
sy=11500psi su=158000psi
- Find The Following A Max Pushing Force And Max Pulling Force B Factor Of Safety Of Rod Buckling C Factor Of Safety O 1 (11.59 KiB) Viewed 23 times
cylinder wall t=.25in
streoke L=24in
p=0 to 1450 psi
