Two steel rods are welded together (see figure). -0₂ Tylx14 Tylyl 0 ✔ KO Oxl Tylyl Tylx1 y1 Oxl Ⓡ The seam is oriented a

[answerhappygod]

Two Steel Rods Are Welded Together See Figure 0 Tylx14 Tylyl 0 Ko Oxl Tylyl Tylx1 Y1 Oxl The Seam Is Oriented A 1 (59.13 KiB) Viewed 35 times

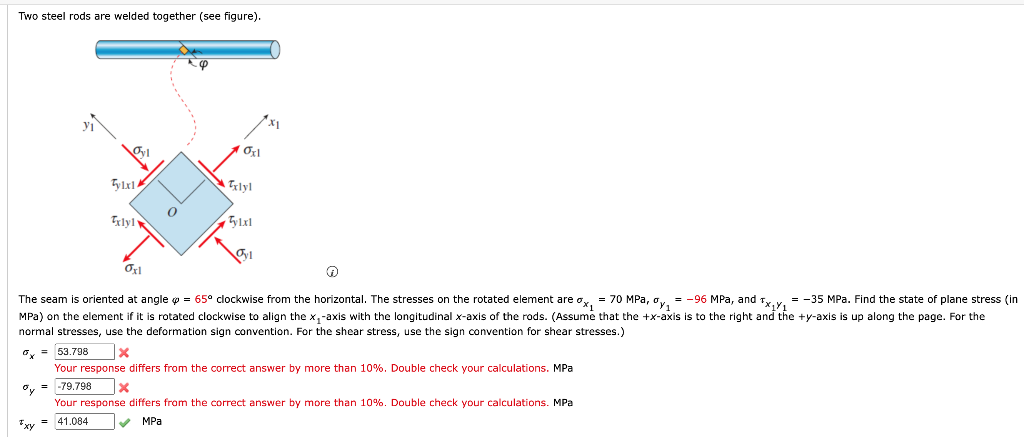

Two steel rods are welded together (see figure). -0₂ Tylx14 Tylyl 0 ✔ KO Oxl Tylyl Tylx1 y1 Oxl Ⓡ The seam is oriented at angle = 65° clockwise from the horizontal. The stresses on the rotated element are ox, = 70 MPa, oy₁ = -96 MPa, and TX₁ = -35 MPa. Find the state of plane stress (in MPa) on the element if it is rotated clockwise to align the x₁-axis with the longitudinal x-axis of the rods. (Assume that the +x-axis is to the right and the +y-axis is up along the page. For the normal stresses, use the deformation sign convention. For the shear stress, use the sign convention for shear stresses.) 0 = 53.798 x Your response differs from the correct answer by more than 10%. Double check your calculations. MPa %y-79.798 X Your response differs from the correct answer by more than 10%. Double check your calculations. MPa xy = 41.084 MPa
