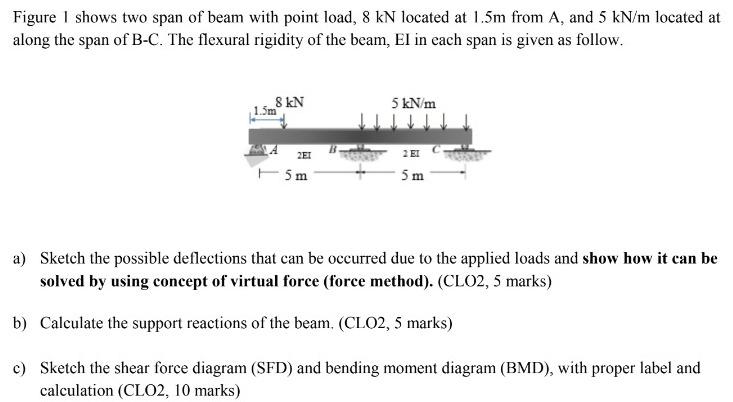

Figure I shows two span of beam with point load, 8 kN located at 1.5m from A, and 5 kN/m located at along the span of B-

[answerhappygod]

Figure I Shows Two Span Of Beam With Point Load 8 Kn Located At 1 5m From A And 5 Kn M Located At Along The Span Of B 1 (38.52 KiB) Viewed 50 times

Figure I shows two span of beam with point load, 8 kN located at 1.5m from A, and 5 kN/m located at along the span of B-C. The flexural rigidity of the beam, EI in each span is given as follow. 8 kN 1.5m 2EI 5m 5 kN/m 2 EI 5m a) Sketch the possible deflections that can be occurred due to the applied loads and show how it can be solved by using concept of virtual force (force method). (CLO2, 5 marks) b) Calculate the support reactions of the beam. (CLO2, 5 marks) c) Sketch the shear force diagram (SFD) and bending moment diagram (BMD), with proper label and calculation (CLO2, 10 marks)
