2. When an electrical motor as shown in Figure 2 operates, it transmits 125 kW to the shaft at 20 Hz. The gears at B, C

Post by answerhappygod »

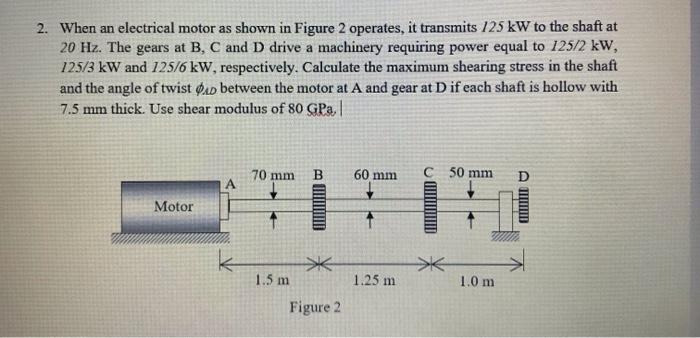

2 When An Electrical Motor As Shown In Figure 2 Operates It Transmits 125 Kw To The Shaft At 20 Hz The Gears At B C 1
2 When An Electrical Motor As Shown In Figure 2 Operates It Transmits 125 Kw To The Shaft At 20 Hz The Gears At B C 1 (40.82 KiB) Viewed 58 times
2. When an electrical motor as shown in Figure 2 operates, it transmits 125 kW to the shaft at 20 Hz. The gears at B, C and D drive a machinery requiring power equal to 125/2 kW, 125/3 kW and 125/6 kW, respectively. Calculate the maximum shearing stress in the shaft and the angle of twist AD between the motor at A and gear at D if each shaft is hollow with 7.5 mm thick. Use shear modulus of 80 GPa. Motor 70 mm B 60 mm C 50 mm THE 1.5 m Figure 2 1.25 m 1.0 m
