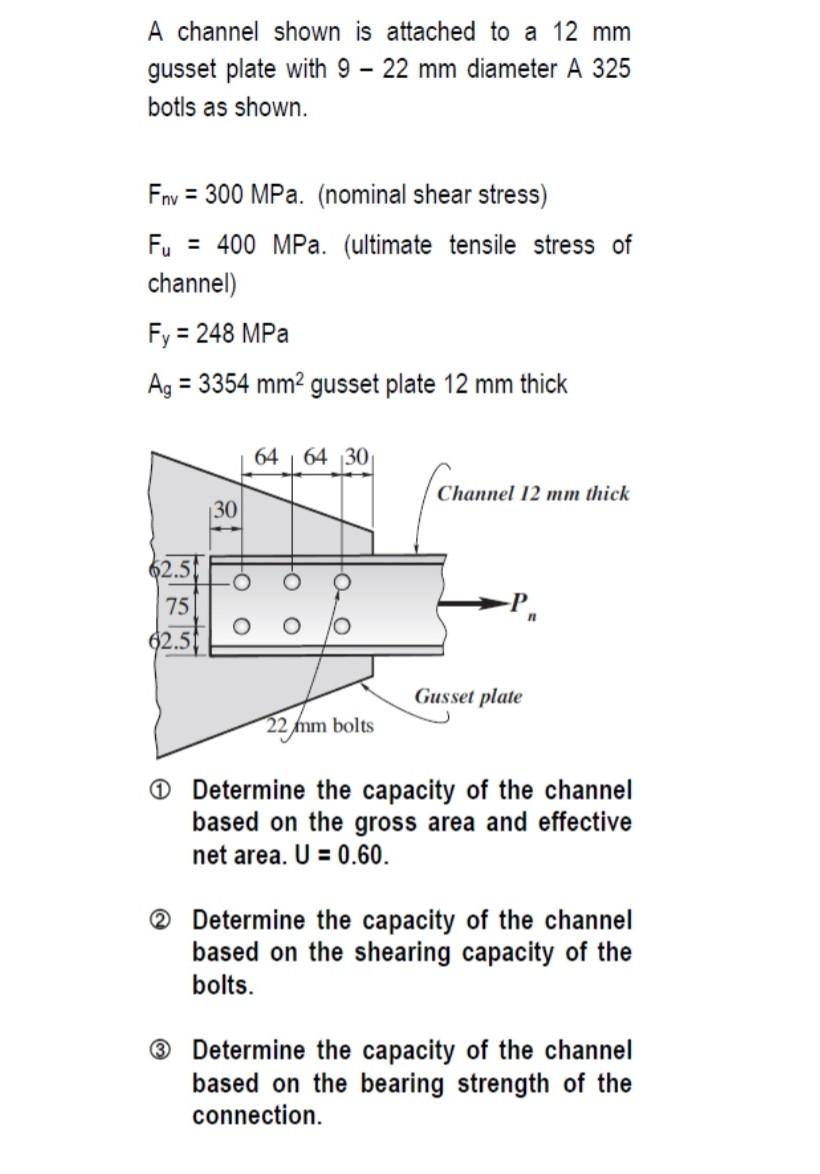

A channel shown is attached to a 12 mm gusset plate with 9- 22 mm diameter A 325 botls as shown. Fnv 300 MPa. (nominal s

[answerhappygod]

A Channel Shown Is Attached To A 12 Mm Gusset Plate With 9 22 Mm Diameter A 325 Botls As Shown Fnv 300 Mpa Nominal S 1 (73.72 KiB) Viewed 50 times

A channel shown is attached to a 12 mm gusset plate with 9- 22 mm diameter A 325 botls as shown. Fnv 300 MPa. (nominal shear stress) Fu = 400 MPa. (ultimate tensile stress of channel) 248 MPa Fy= = Ag = 3354 mm² gusset plate 12 mm thick 62.5t 75 $2.5 64 64 30 -O 0.0 22 mm bolts Channel 12 mm thick Gusset plate Determine the capacity of the channel based on the gross area and effective net area. U = 0.60. Determine the capacity of the channel based on the shearing capacity of the bolts. Determine the capacity of the channel based on the bearing strength of the connection.
