In the structure shown, an 8-mm-diameter pin is used at A, and 12-mm-diameter pins are used at Band D. Knowing that the

Post by answerhappygod »

In The Structure Shown An 8 Mm Diameter Pin Is Used At A And 12 Mm Diameter Pins Are Used At Band D Knowing That The 1
In The Structure Shown An 8 Mm Diameter Pin Is Used At A And 12 Mm Diameter Pins Are Used At Band D Knowing That The 1 (49.92 KiB) Viewed 64 times

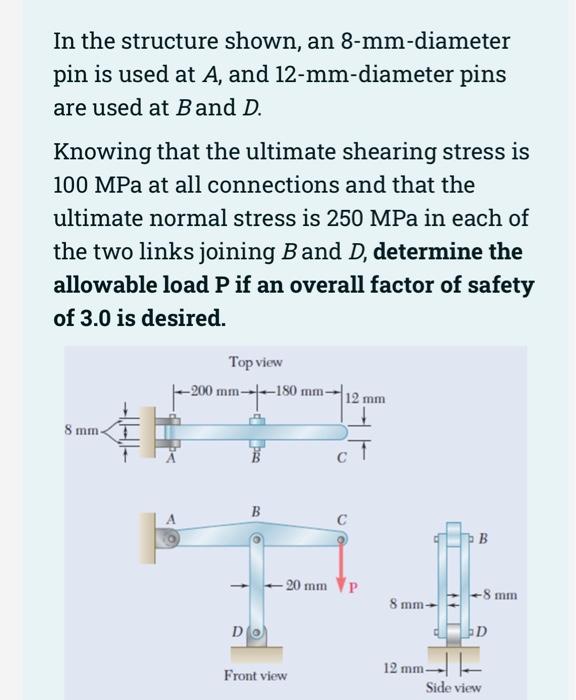

In the structure shown, an 8-mm-diameter pin is used at A, and 12-mm-diameter pins are used at Band D. Knowing that the ultimate shearing stress is 100 MPa at all connections and that the ultimate normal stress is 250 MPa in each of the two links joining Band D, determine the allowable load P if an overall factor of safety of 3.0 is desired. 8 mm. Top view -200 mm- D B -180 mm- 12 mm Front view C - 20 mm P 8 mm- 12 mm- B -8 mm D Side view
