Example 3.3 Design the beam shown for the service load moment of 56.36 kN.m Material: C20 (Allowable stress: 8 MPa) S220

Post by answerhappygod »

Example 3 3 Design The Beam Shown For The Service Load Moment Of 56 36 Kn M Material C20 Allowable Stress 8 Mpa S220 1
Example 3 3 Design The Beam Shown For The Service Load Moment Of 56 36 Kn M Material C20 Allowable Stress 8 Mpa S220 1 (45.08 KiB) Viewed 49 times
PLEASE SOLVE ONLY PART B BELOW
B) Determine the elastic moment carrying capacity and requiredreinforcement for the beam given in Example 3.3

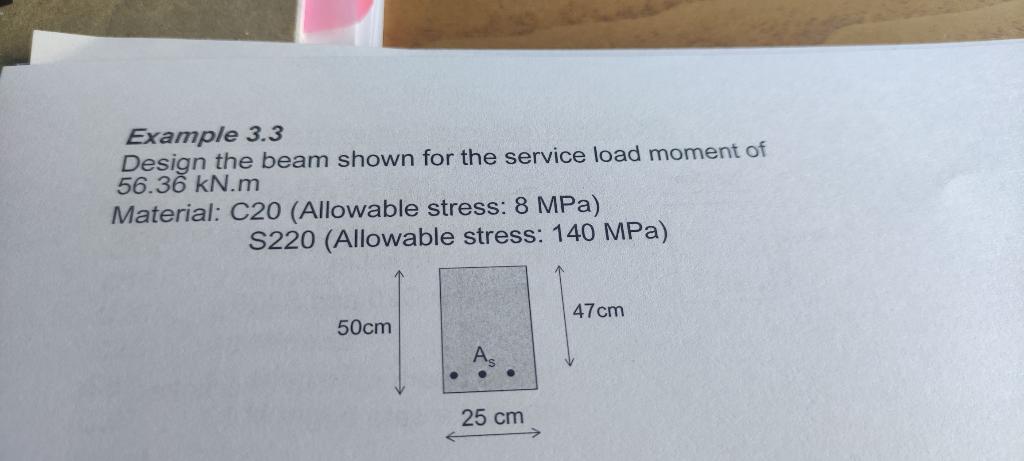

Example 3.3 Design the beam shown for the service load moment of 56.36 kN.m Material: C20 (Allowable stress: 8 MPa) S220 (Allowable stress: 140 MPa) 50cm 25 cm 47cm
