A concrete beam section with f' = 25 MPa is 250mm wide, 500mm deep has a 435mm effective depth. It is reinforced with 19

Post by answerhappygod »

A Concrete Beam Section With F 25 Mpa Is 250mm Wide 500mm Deep Has A 435mm Effective Depth It Is Reinforced With 19 1
A Concrete Beam Section With F 25 Mpa Is 250mm Wide 500mm Deep Has A 435mm Effective Depth It Is Reinforced With 19 1 (100.49 KiB) Viewed 48 times

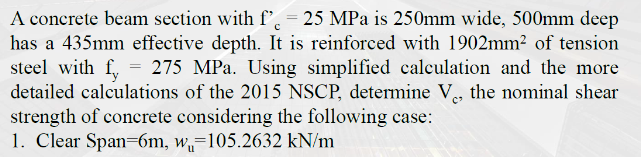

A concrete beam section with f' = 25 MPa is 250mm wide, 500mm deep has a 435mm effective depth. It is reinforced with 1902mm² of tension steel with f = 275 MPa. Using simplified calculation and the more detailed calculations of the 2015 NSCP, determine V, the nominal shear strength of concrete considering the following case: 1. Clear Span=6m, w 105.2632 kN/m
