Q5 Figure 5 shows an overhanging beam subjected to loading shown. (a) Determine the reactions (b) Drawn the Shear Force

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q5 Figure 5 shows an overhanging beam subjected to loading shown. (a) Determine the reactions (b) Drawn the Shear Force

Post by answerhappygod »

Q5 Figure 5 Shows An Overhanging Beam Subjected To Loading Shown A Determine The Reactions B Drawn The Shear Force 1
Q5 Figure 5 Shows An Overhanging Beam Subjected To Loading Shown A Determine The Reactions B Drawn The Shear Force 1 (359.98 KiB) Viewed 50 times

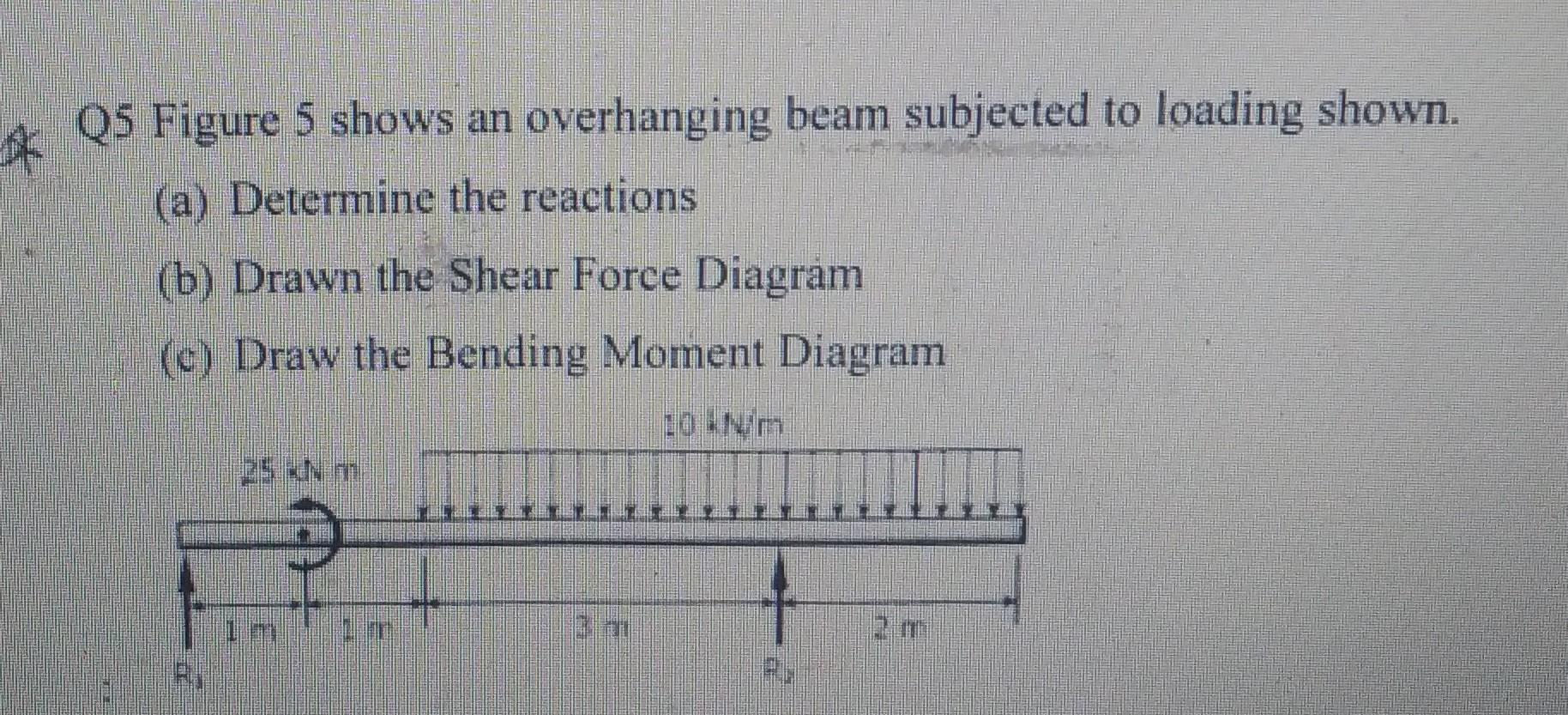

Q5 Figure 5 shows an overhanging beam subjected to loading shown. (a) Determine the reactions (b) Drawn the Shear Force Diagram (e) Draw the Bending Moment Diagram 20 N/m 25 kN m.
