Determine the force in each member of the loaded truss. All triangles are 3-4-5. Enter a positive number if the member i

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Determine the force in each member of the loaded truss. All triangles are 3-4-5. Enter a positive number if the member i

Post by answerhappygod »

Determine The Force In Each Member Of The Loaded Truss All Triangles Are 3 4 5 Enter A Positive Number If The Member I 1
Determine The Force In Each Member Of The Loaded Truss All Triangles Are 3 4 5 Enter A Positive Number If The Member I 1 (27.43 KiB) Viewed 45 times

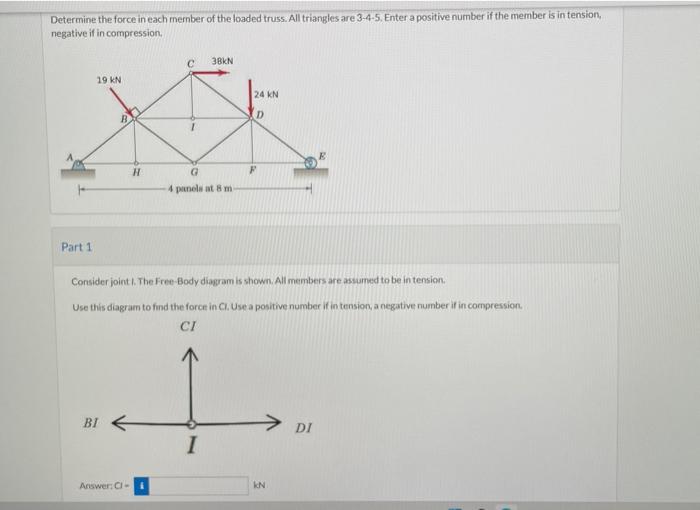

Determine the force in each member of the loaded truss. All triangles are 3-4-5. Enter a positive number if the member is in tension, negative if in compression. Part 1 19 KN CO BI C Answer: Cli 11 38kN G -4 panels at 8 m- Consider joint I. The Free-Body diagram is shown. All members are assumed to be in tension. Use this diagram to find the force in Cl. Use a positive number if in tension, a negative number if in compression. CI I 24 KN D kN DI
