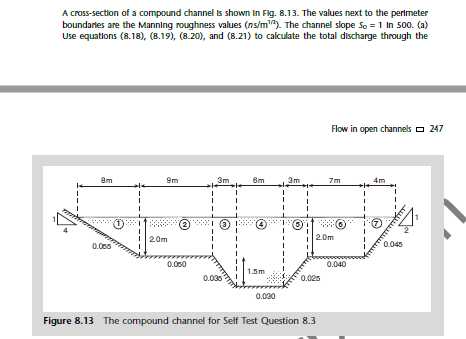

A cross-section of a compound channel is shown in Fig. 8.13. The values next to the perimeter boundaries are the Manning

[answerhappygod]

A Cross Section Of A Compound Channel Is Shown In Fig 8 13 The Values Next To The Perimeter Boundaries Are The Manning 1 (25.33 KiB) Viewed 47 times

A cross-section of a compound channel is shown in Fig. 8.13. The values next to the perimeter boundaries are the Manning roughness values (ns/m¹2). The channel slope So = 1 In 500. (a) Use equations (8.18), (8.19), (8.20), and (8.21) to calculate the total discharge through the me 8m 0.055 9m 2.0m 0.050 3m 6m 3m 0.035 1.5m 0.030 0.025 Flow in open channels ☐ 247 2.0m Figure 8.13 The compound channel for Self Test Question 8.3 7m 0.040 4m 0.045
