Q2. Draw the shear force and bending moment diagrams for the following frame using moment distribution method. Assume B

Post by answerhappygod »

Q2 Draw The Shear Force And Bending Moment Diagrams For The Following Frame Using Moment Distribution Method Assume B 1
Q2 Draw The Shear Force And Bending Moment Diagrams For The Following Frame Using Moment Distribution Method Assume B 1 (135.11 KiB) Viewed 41 times

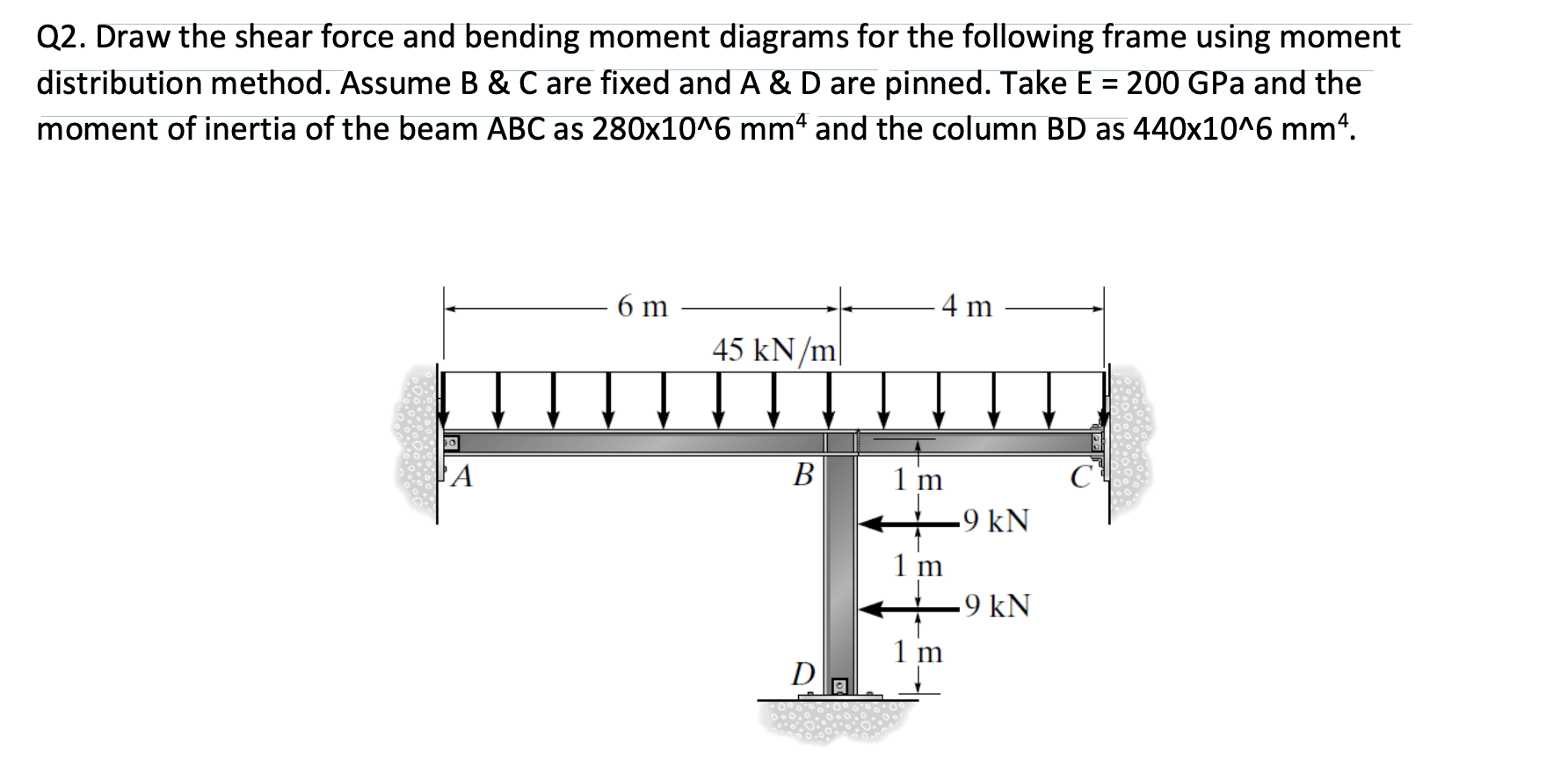

Q2. Draw the shear force and bending moment diagrams for the following frame using moment distribution method. Assume B & C are fixed and A & D are pinned. Take E = 200 GPa and the moment of inertia of the beam ABC as 280x10^6 mmª and the column BD as 440x10^6 mm². A 6 m 45 kN/m B D -4 m 1 m -9 kN .9 kN C
