Topic: motion curves (dynamics of rigid bodies)
A particles moves in a straight line with the acceleration shownin the motion curve given. Knowing that the it starts from theorigin with initial velocity of -18 ft per second, plot thevelocity - time and distance time curves within 0 to 20 seconds.Compute also the velocity, position and total distance traveled att = 12 seconds.

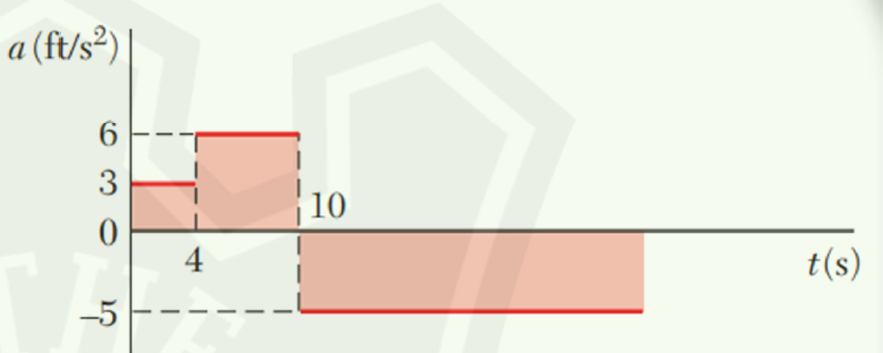

Topic Motion Curves Dynamics Of Rigid Bodies A Particles Moves In A Straight Line With The Acceleration Shown In The 1 (97.27 KiB) Viewed 47 times
a (ft/s²) 6 3 0 -5 4 10 t(s)
