1. An airplane's transfer function from Elevator input to pitch angle output is governed by the following differential e

Post by answerhappygod »

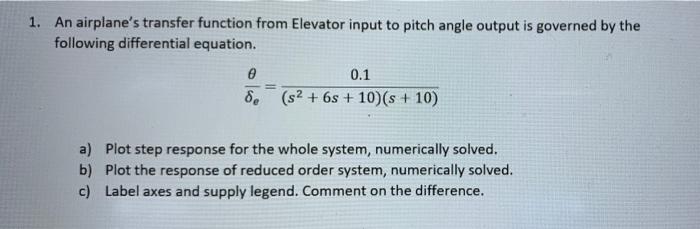

1 An Airplane S Transfer Function From Elevator Input To Pitch Angle Output Is Governed By The Following Differential E 1
1 An Airplane S Transfer Function From Elevator Input To Pitch Angle Output Is Governed By The Following Differential E 1 (24.58 KiB) Viewed 46 times
1. An airplane's transfer function from Elevator input to pitch angle output is governed by the following differential equation. 0 0.1 de (s² + 6s + 10) (s + 10) = a) Plot step response for the whole system, numerically solved. b) Plot the response of reduced order system, numerically solved. c) Label axes and supply legend. Comment on the difference.
