Please solve the question STEP BY STEP, in DETAIL, and show it CLEARLY. Thanks in advance.

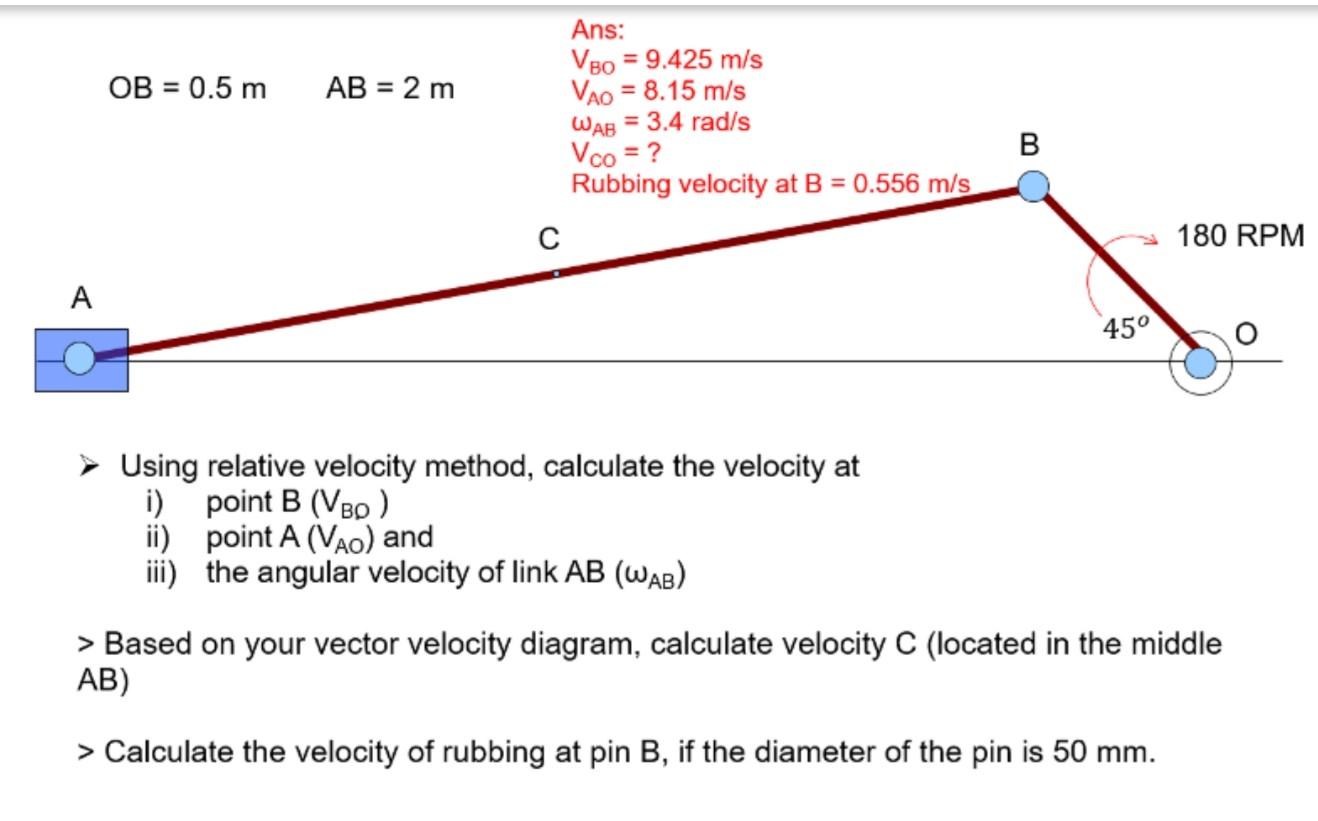

A OB = 0.5 m AB = 2 m C Ans: VBO = 9.425 m/s VAO = 8.15 m/s WAB = 3.4 rad/s Vco = ? Rubbing velocity at B = 0.556 m/s Using relative velocity method, calculate the velocity at i) point B (VB) ii) point A (VÃO) and iii) the angular velocity of link AB (WAB) B 45⁰ 180 RPM > Based on your vector velocity diagram, calculate velocity C (located in the middle AB) > Calculate the velocity of rubbing at pin B, if the diameter of the pin is 50 mm.
